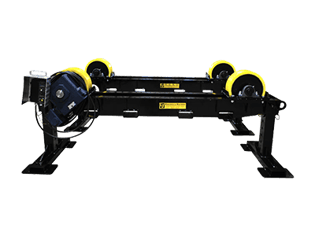

REFURBISHED 12-TON HEIGHT ADJUST TURNING ROLLS 06R-100A/200
Price |
06R-100A (Driver): $7,521 USD - LIMITED AVAILABILITY 06R-200 (Idler): $3,251 USD - OUT OF STOCK |
Load Capacity (balanced) | Driver: 12,000 lbs (6-ton) Idler: 12,000 lbs (6-ton) |
Diameter Range | 0.5' - 12' |
Footprint | 34" x 103" x 26" |
Height Adjustability | 23" - 39" (top of wheel) Adjustable in 3" increments |
Tractive Effort | SIngle Drive, 3,500 lbs |
Output Torque | 25,000 in-lbs |
Power Requirements | 110 V, 1-ph |
Rotation Speed | 5–50 in/min |
Equipment Mass | Driver: 975 lbs; Idler: 670 lbs |
Available Accessories | Hand Pendants: bidirectional with digital readout (Cabled); wireless style available (>110V models only) Foot Switch: forward/reverse not included on this clearance item. Casters: motorized or non-motorized rail casters |
Options | Input Power Options: as per standard spec or to customer requirements Custom Height Range: to customer requirement Upgrade Controls: HMI touchscreens, full integration to LJ column boom welding manipulators |
