Horizontal Welding Turntable To Let
40 Ton TRN40-100

KEY SPECIFICATIONS

Load Capacity 80,000 lbs
Eccentricity Up to 12”
Footprint 120"x 120"x 44"
Table Size/
Span		 120"
Power Requirements 480V 3-ph*
Rotation Speed 0.05–1.2 RPM
Ground Capacity 1,500 Amps
Equipment Mass 12,350 lbs

PRECISE POSITIONING

Low profile turntables are used for precise positioning in the flat or horizontal position. LJ’s ultra-low profile turntables are the lowest profile turntables available on the market.

REQUEST QUOTE

PHOTO GALLERY

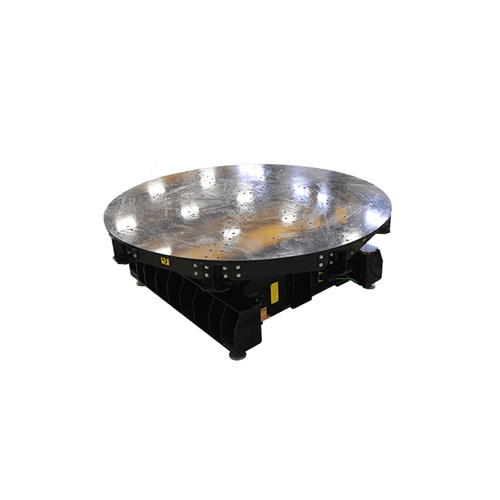

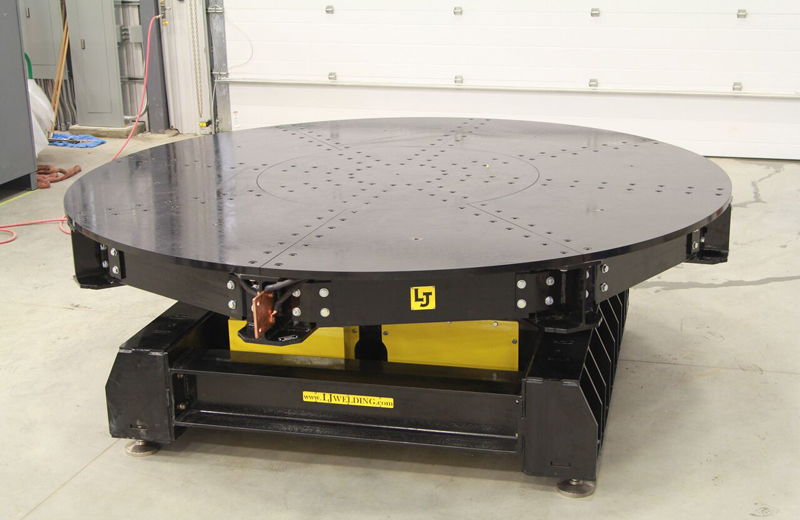

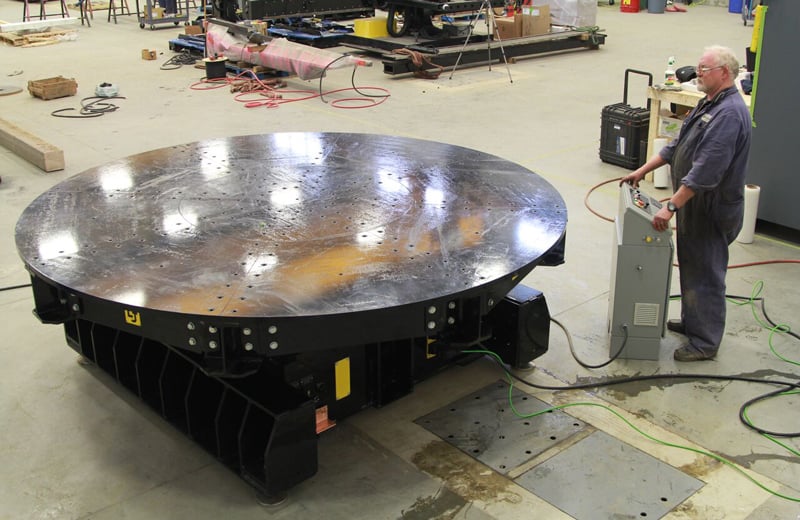

Low Profile Turntable - TRN40 100

Request quote

WELDING TURNTABLE TO LET • DESCRIPTION

LJ’s Horizontal Welding Turntables To Let are compact machines that can be fully integrated with column and boom welders and robots. Our low profile turntables, or welding rotating tables, provide a high-precision, low-cost method of rotating a pipe, vessel or industrial workpiece around a vertical axis. We also provide various accessories and options that can be added to customers’ requests. That includes different hand pendants, footswitches, work holding or upgraded control options. Finally, LJ’s TRN40-100 has a loading capacity of 40 tons and a table that can rotate cylindrical objects with a diameter of up to 120".

WELDING TURNTABLE TO LEASE • BENEFITS

Our Horizontal Welding Turntables To Lease provide a cost-effective method of rotating pipes and vessels and enable precise positioning in the flat or horizontal position. Another benefit our TRN40-100 rental option provides is reduced welder fatigue with a more ergonomic work environment that is secured by continuous weld in the best position. Furthermore, our low profile floor turntable TRN40-100 produces consistent, interruption-free welding of the circumference or periphery objects which leads to reducing rework, improving weld quality and aesthetic.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Welding Turntable with different specs, have a look at our:

TRN20-200
20-TON LOW PROFILE TURNTABLE

Floor-Turntable-For-Weld-Rentals-20ton

TRN10HS-100
2.5/5-TON LOW PROFILE TURNTABLE

Low-Profile-Floor-Turntable-To-Let-TRN10HS

TRN10-700
10-TON LOW PROFILE TURNTABLE

Welding-Rotating-Tables-For-Hire-10ton

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.

Contact Us

Found the right welding turntable?
looking to rent or lease welding turntables?
Fill in our express quote request today:
