Low Profile Floor Turntable To Let
2.5/5 Ton TRN10HS-100

KEY SPECIFICATIONS

Load Capacity 5,000 lbs or 10,000 lbs
Eccentricity 0” (high speed operation)
Footprint 36.75” x 36.75” x 21.375”
Table Size/
Span		 52"
Power Requirements 480V 3-ph*
Rotation Speed 3-60 RPM/1.5-30 RPM
Ground Capacity 800 Amps
Equipment Mass 1,900 lbs



PRECISE POSITIONING

Low profile turntables are used for precise positioning in the flat or horizontal position. LJ’s ultra-low profile turntables are the lowest profile turntables available on the market.

REQUEST QUOTE

PHOTO GALLERY

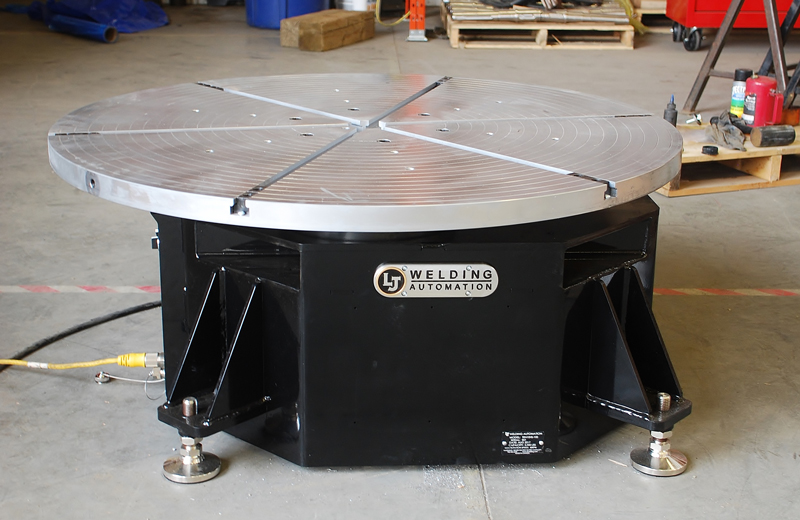

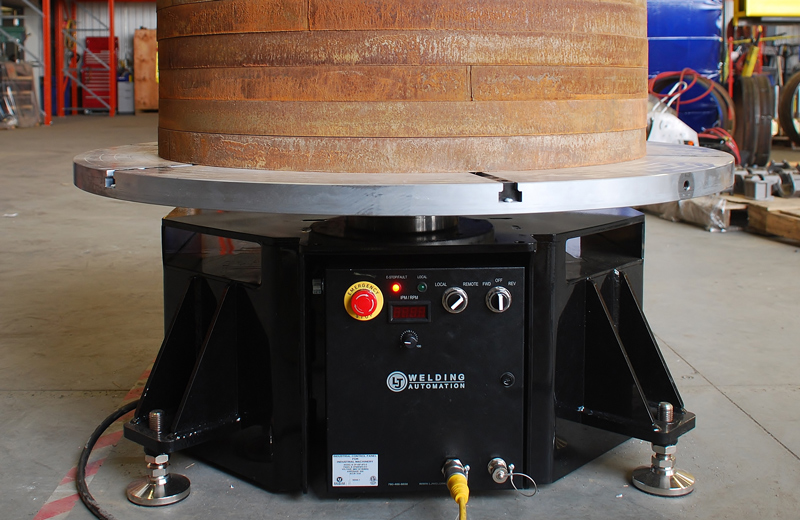

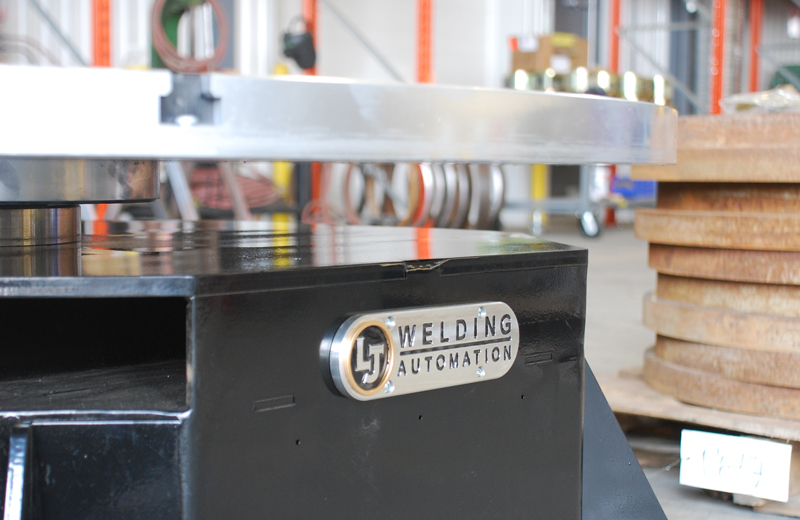

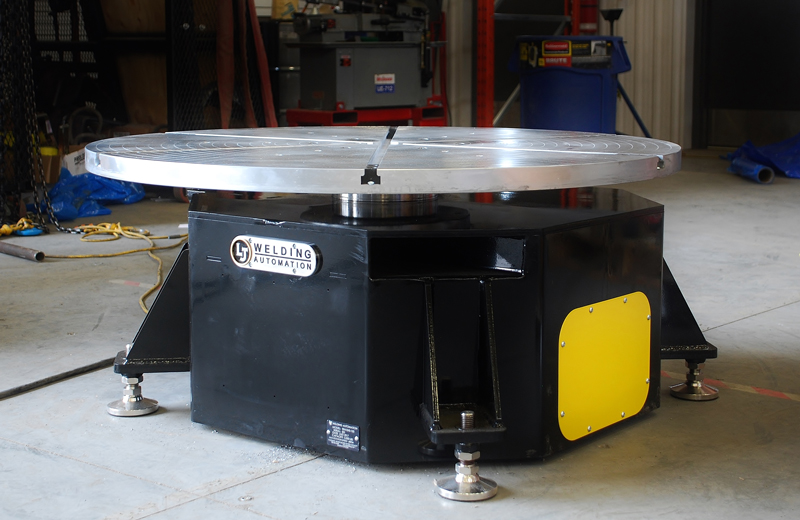

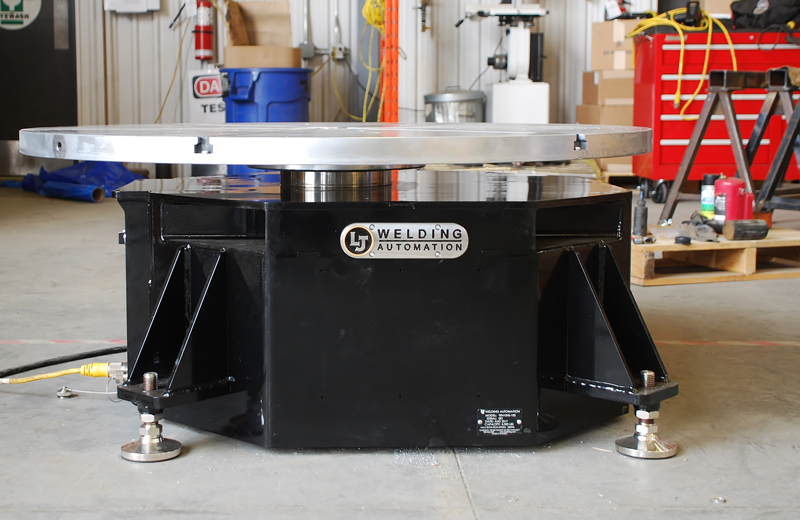

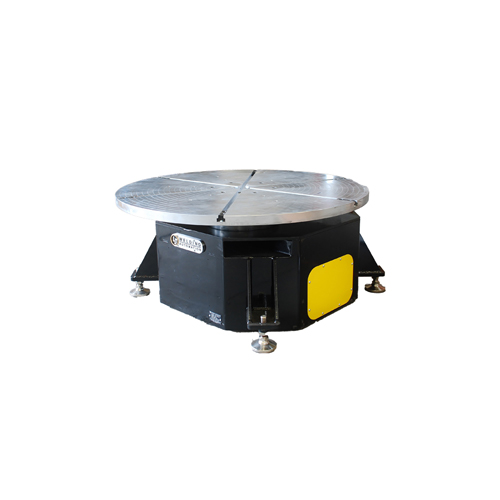

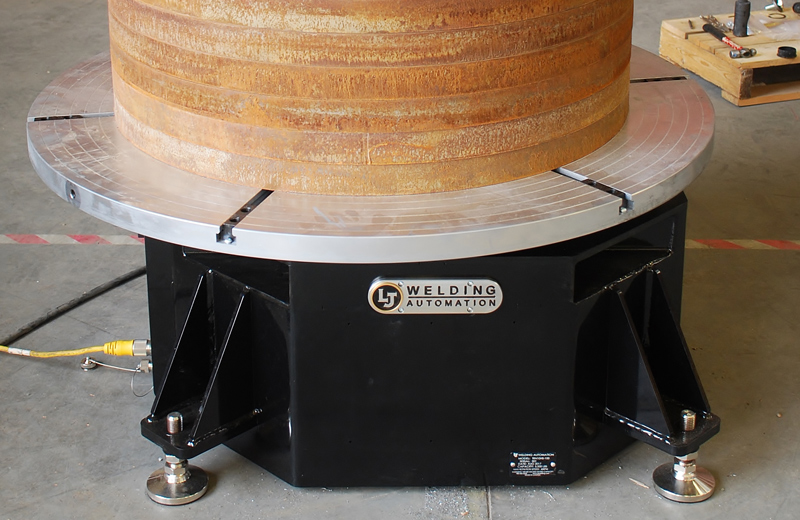

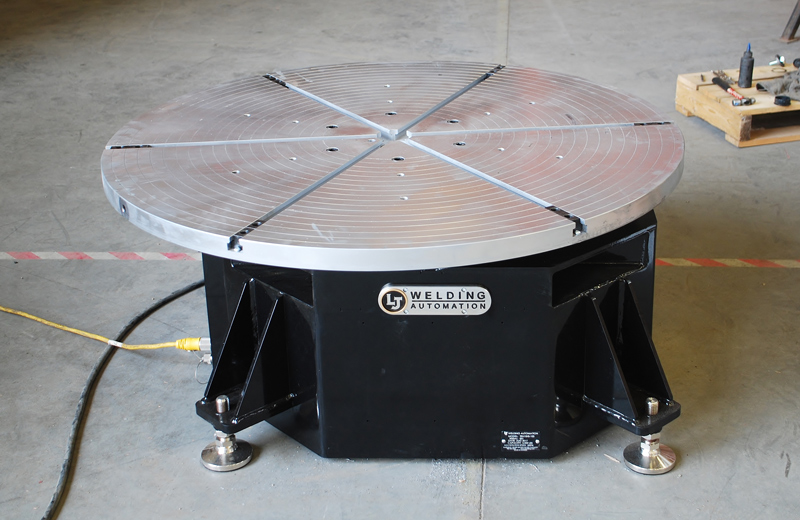

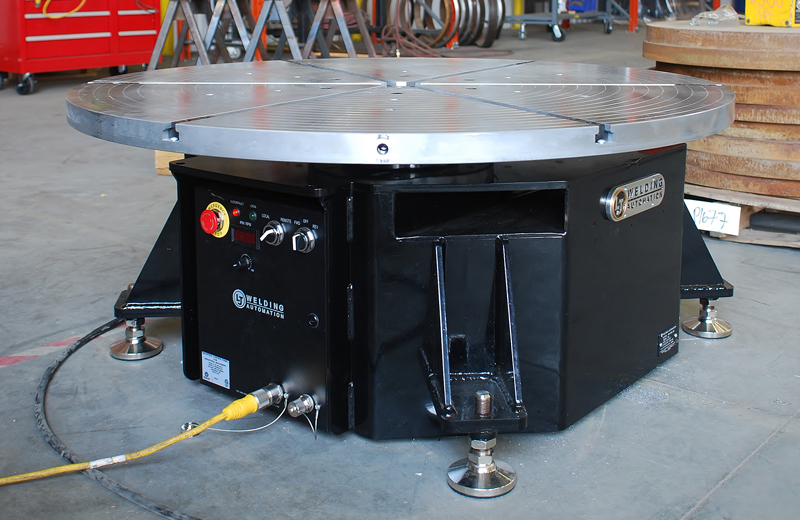

Low Profile Turntable - TRN10HS 100

Request quote

LOW PROFILE TURNTABLE TO LET • DESCRIPTION

LJ’s Low Profile Floor Turntables To Let are compact machines that can be fully integrated with column and boom welders and robots. Our low profile turntables, or welding rotating tables, provide a high-precision, low-cost method of rotating a pipe, vessel or industrial workpiece around a vertical axis. We also provide various accessories and options that can be added to customers’ requests. That includes different hand pendants, foot switches, work holding or upgraded control options. Finally, LJ’s TRN10HS-100 rental option has a loading capacity of 5,000 lbs at 60 RPM and 10,000 lbs at 30RPM. It can also rotate cylindrical objects with a diameter ranging from 48" to 52”.

LOW PROFILE TURNTABLE FOR RENT • BENEFITS

LJ’s Low Profile Floor Turntables For Rent is used for precise positioning in the flat or horizontal position. Using our low profile turntables ensures a cost-effective method of rotating a workpiece around a vertical axis. Furthermore, our low profile turntables provide a cost-effective method of rotating pipes and vessels and enable precise positioning in the flat or horizontal position. Lastly, LJ’s TRN10HS-100 rental model ensures reduced welder fatigue with a more ergonomic work environment that is secured by continuous weld in the best position.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Welding Turntable with different specs, have a look at our:

TRN20-200
20-TON LOW PROFILE TURNTABLE

Floor-Turntable-For-Weld-Rentals-20ton

TRN40-100
40-TON LOW PROFILE TURNTABLE

Horizontal-Welding-Turntable-To-Let-40ton

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
