6' x 6' SubArc Column & Boom Welding Manipulator Rentals


Load Capacity (at Boom End) 500 lb
Boom Stroke 72”
Column Stroke 72"
Power Requirements 480V 3-ph*
Equipment Mass 7,500 lb

*208 - 600V, 50 or 60 Hz input power options available


Control platform (Joystick or fully integrated touchscreen options)
SAW or GMAW welding systems (Single, Twin, or Tandem wire)
Cold Wire TIG Systems
Powered cross slides (1 or 2 axis)

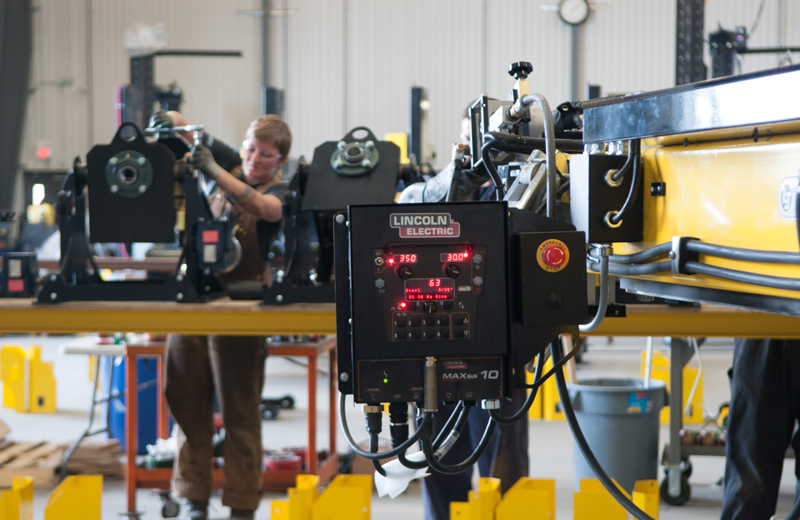

Weld Camera systems (SAW or Open Arc)
Seam Tracking (Vision/Laser or Tactile/Mechanical)
Travel Car (Powered or Manual)
Pre-heating system (Rolling Induction Heater)
Flux Recovery and delivery systems
Dual SAW or MIG/SAW set-ups


LJ’s Column & Boom Manipulators are used in applications of automated welding, where precision and efficiency are necessary. They provide weld boom stiffness, welding head stability, operator controls, and ease of use as key driving factors

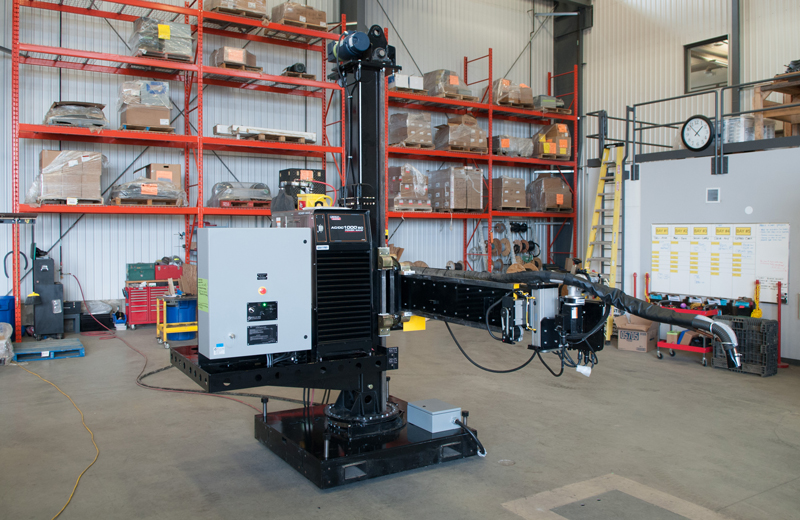

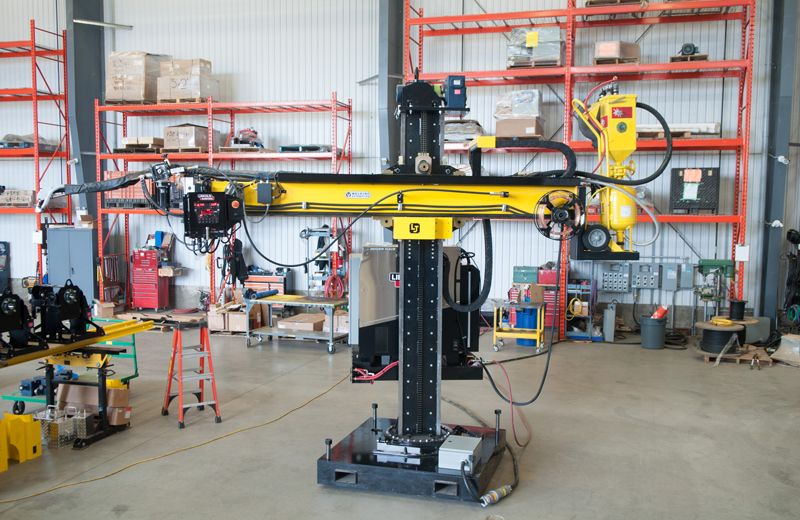

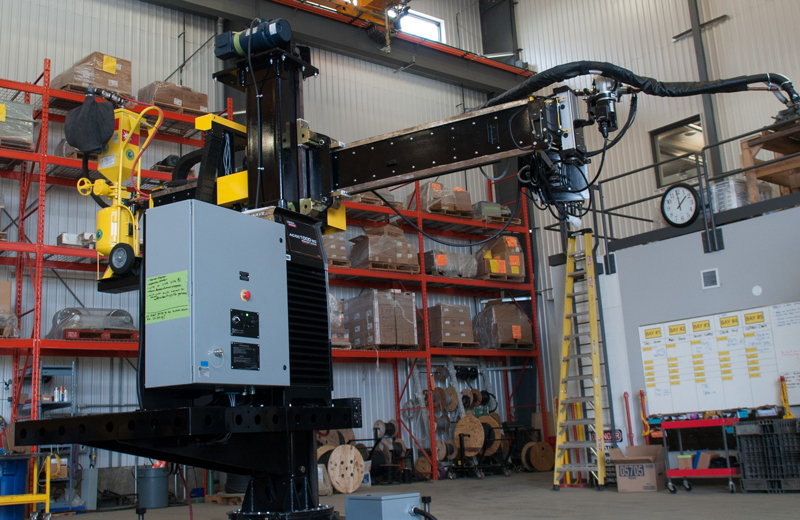

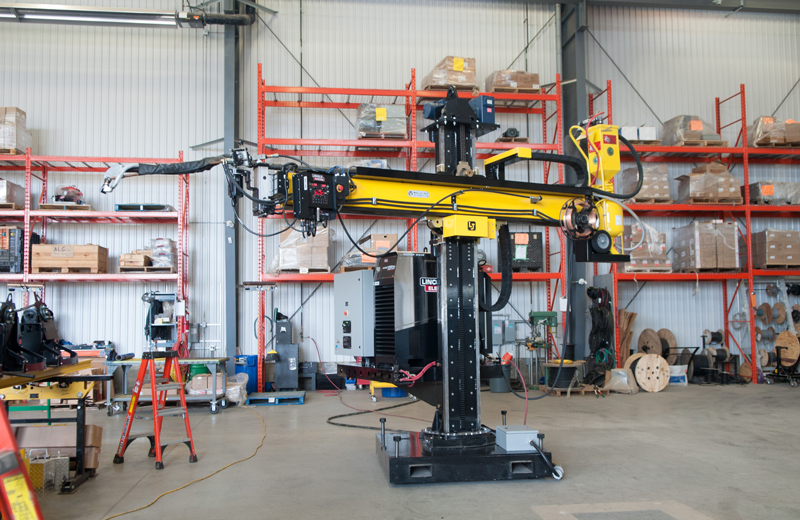

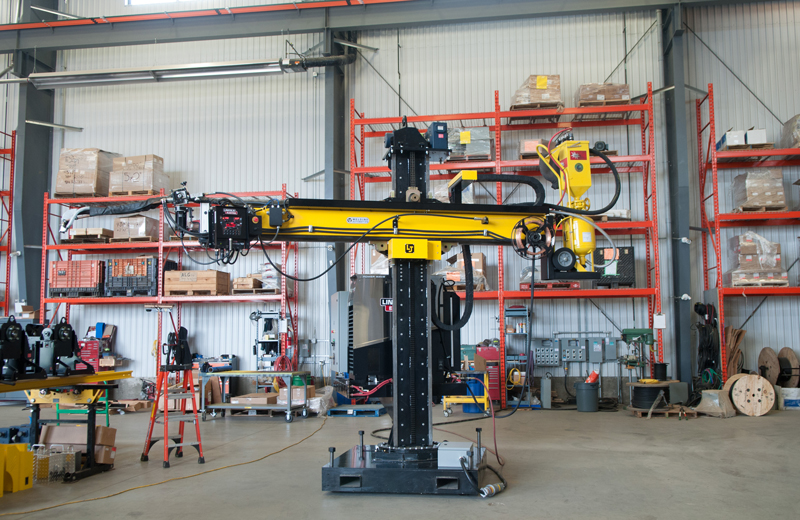

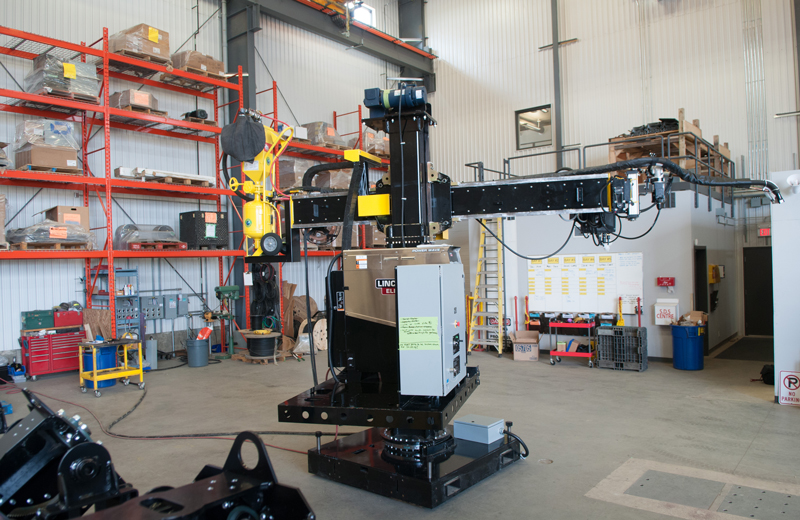

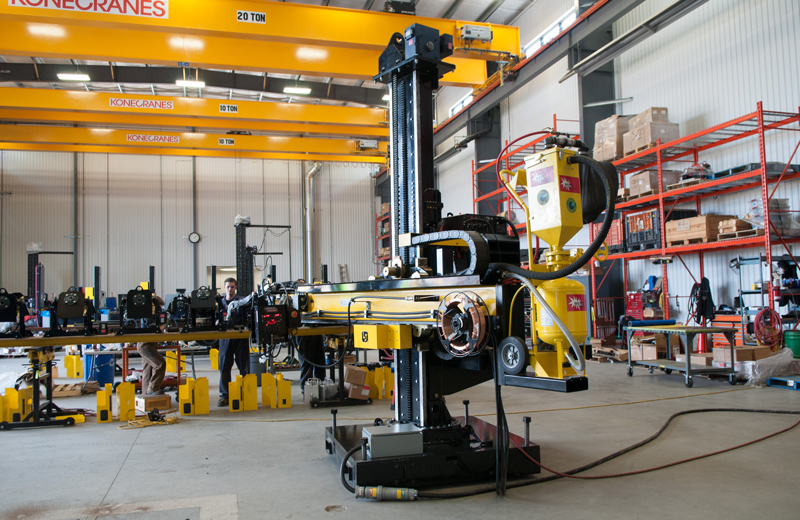

Our 6' x 6' SubArc Column & Boom Manipulator Rental MN6-100 has a loading capacity of 500 lb, boom stroke of 72" and column stroke of 72". This machine has built-in camera systems that help operators to be precise throughout the welding processes and also powered cross slides that ensure the precision of torch movement. We also offer a wide selection of accessories and options available depending on the customer's request and need. As far as the welding source options are concerned, we offer submerged arc (SAW), MIG, or a solution to the customer’s specification. We also offer control upgrades including full integration to LJ welding positioners or turning rolls through HMI touchscreens and master PLC.


Generally, our 6' x 6'SubArc Column & Boom Manipulator Rentals, including MN6-100 are irreplaceable for applications that involve pipes and vessels. MN6-100 essentially maximizes productivity and efficiency. It also reduces rework and scrap, and the final results aren't skilled dependable since the whole process is automated. MN6-100 offers a modular construction that ensures 360-degrees radial accessibility to welding heads, covering vast areas in the shop. It is also ideal for hard automation welding solutions.
