|Loading capacity||80,000 lb|
|Spool Size Range:||5–16 ft diameter
10 ft max width
|Tractive Effort/Torque:||8,500 lb|
|Rotation Speed:||48-480 in/min|
|Height Range:||Low Profile, fine adjust leveling feet optional|
|Power Requirements:||480V, 3-ph*|
|Equipment Mass:||6,700 lb|
|Footprint:||102"x 156"x 43"|
Variable speed drive for rotational speed adjustability; input power supply to customer needs.

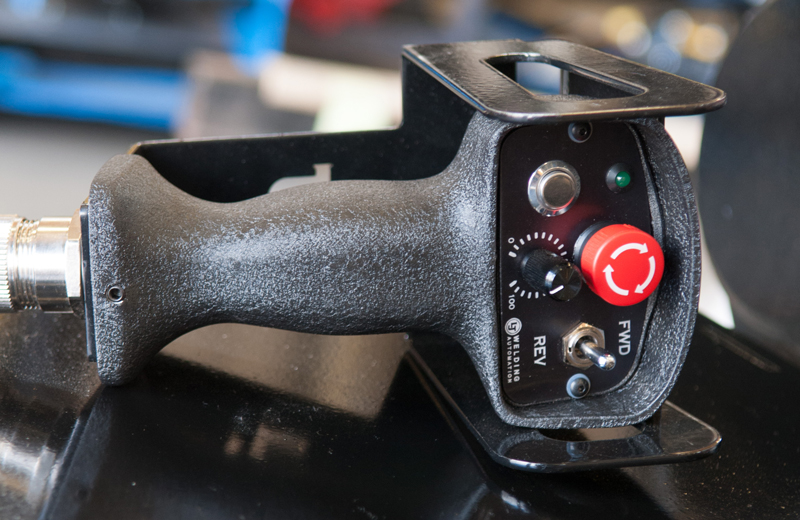

The loading capacity of Welding Cable Reel Roller Rental CR810-100 is 40 tons and the spool size range is 5–16 ft in diameter or 10 ft in maximum width. Our cable reel roller CRR810-100 can perform an output torque of 8,500 in-lb and rotation speed of 48–480 in/min. We also offer a variety of options and accessories that can be added on customer’s request. That includes bidirectional hand pendants, foot-switches and rollers.
Our 40-Ton Welding Cable Reel Roller Rentals CRR810-100 can operate remotely with the usage of foot-switches and provides fork pockets on sides for personnel safety. Using our CRR810-100 essentially limits reeling start/stop times, saving workers a lot of time. Furthermore, the handling and rolling of heavy spool cables become easier and safer for workers thanks to our cable reel rollers. Lastly, we also offer slip clutches for CRR810-100’s gearbox that ensures protection against over-torque.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for Cable Reel Roller with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
