|Loading capacity||30,000 lb|
|Spool Size Range:||2–12 ft diameter
8 ft max width
|Tractive Effort/Torque:||3,000 lb|
|Rotation Speed:||48-480 in/min|
|Height Range:||Low Profile, fine adjust leveling feet optional|
|Power Requirements:||240V, 1-ph*|
|Equipment Mass:||3,015 lb|
|Footprint:||99"x 134"x 22"|

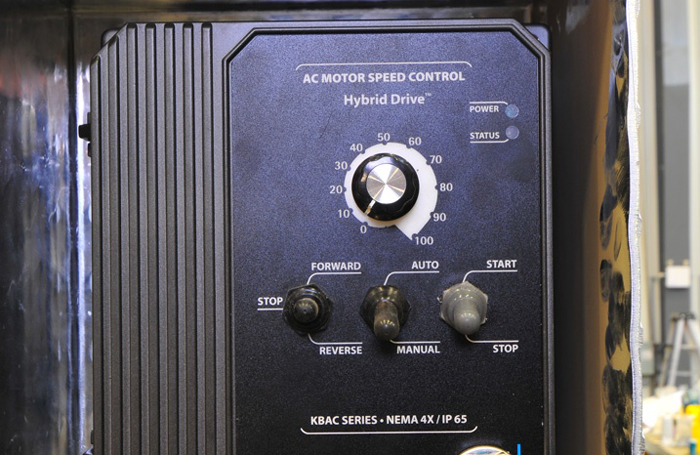

Variable speed drive for rotational speed adjustability; input power supply to customer needs.
The loading capacity of Welding Cable Reel Roller Rental CR68-100 is 15 tons and the spool size range is 2–12 ft in diameter or 8 ft in maximum width. Our cable reel roller CRR68-100 can perform an output torque of 5,000 in-lb and a rotation speed of 48–480 in/min. We also have multiple options and accessories that can be added to customers’ requests and need. That includes bidirectional hand pendants, foot switches and rollers.

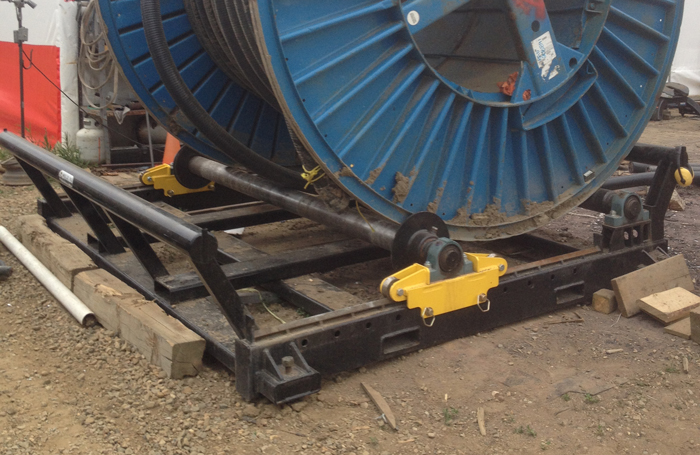

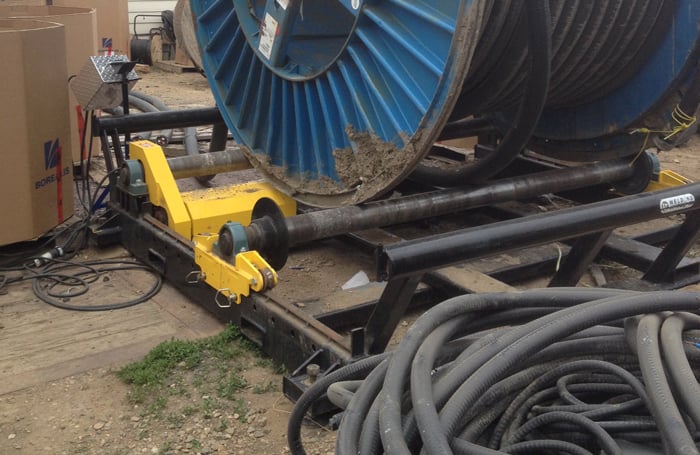

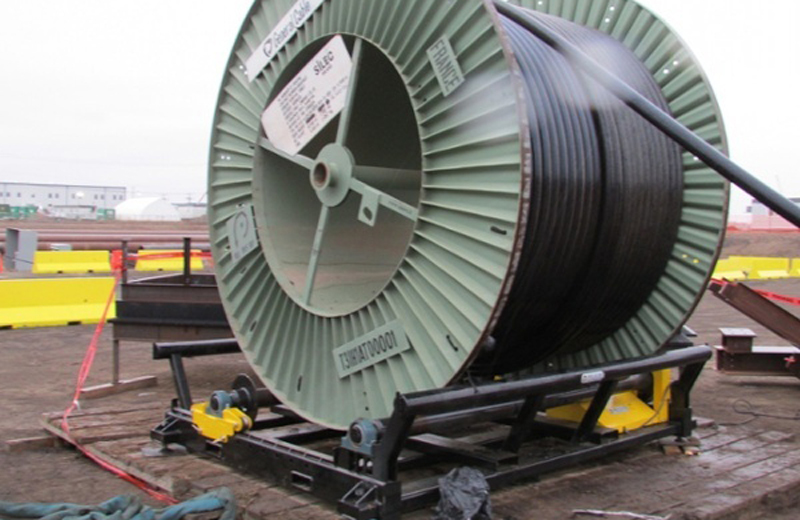

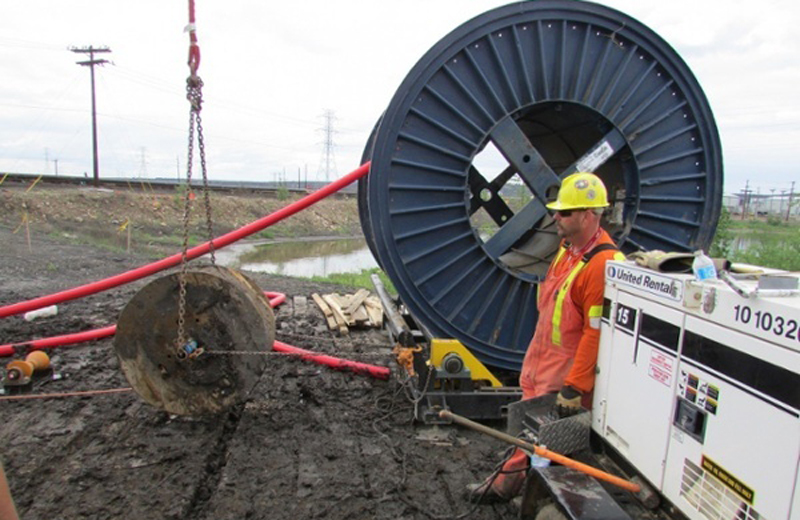

Our 15-Ton Welding Cable Reel Roller Rental CRR68-100 is used in applications that involve unwinding, rolling or handling heavy spool cables. The benefit our machine offers is secured safety and maximized productivity when performing these activities. LJ’s CRR68-100 can be remotely controlled and limits start/stop reeling times. Both of these benefits are attributed to the simplicity of using CRR68-100. Lastly, CRR68-100 comes with a slip clutch for a gearbox which ensures protection against over-torque
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for Cable Reel Roller with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
