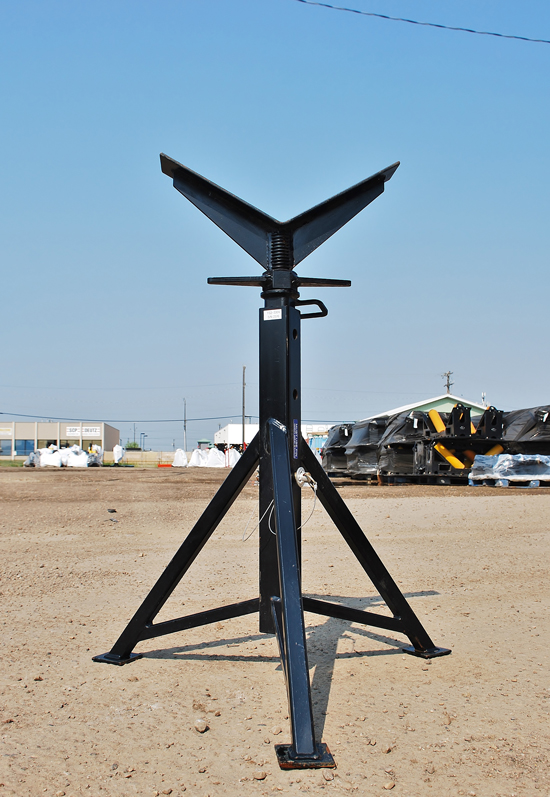

Modular Tripod Stands For Lease

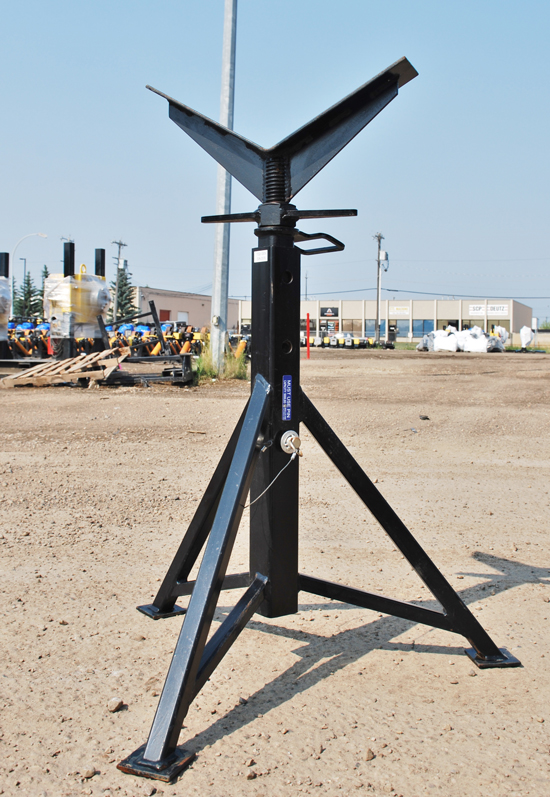

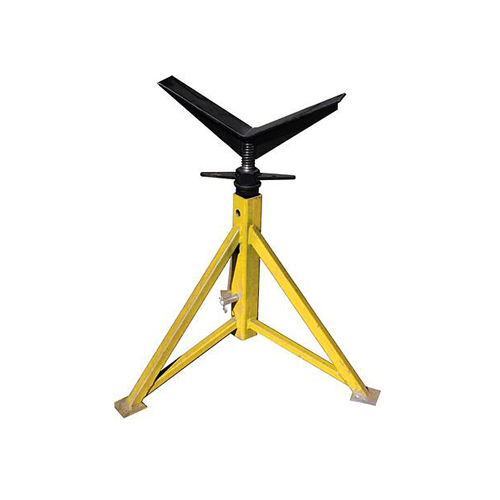

2.5 Ton TS3 Series

KEY SPECIFICATIONS

Loading capacity 5,000 lbs
Diameter Range 2"– 28"
Footprint

TS3-160V: 26"x 26"x 21"

TS3-280V: 33"x 33"x 21"

TS3-330V: 33"x 33"x 21"

Height Range

TS3-160V: 16"– 25"

TS3-280V: 28"– 44"

TS3-330V: 33"– 56"

Weight

TS3-160V: 39 lbs

TS3-280V: 53 lbs

TS3-330V: 58 lbs

TRIPOD STANDS FOR LEASE • DESCRIPTION

LJ’s Modular Tripod Stands For Lease come with a load capacity of 2.5 tons, diameter range from 2" to 28" and height adjustability ranging from 16" to 56", depending on the model. We also offer various additional accessories that can be added to customers’ requests. That includes roller wheels (urethane, steel or custom material), multidirectional roller ball transfers, vee-rollers, flat rollers and flat self-levelling feet, vee or rail mount casters, swivel-style casters with brakes.

TRIPOD STANDS FOR RENT • BENEFITS

A great benefit that LJ’s Modular Tripod Stands For Rent provides is the height adjustability that allows operators to raise or decline pipes to the same height of the working position which saves a lot of time and work. By bringing the pipe in parallel to the work position it is much easier to adjust hi/low, achieve a square face-off and avoid any misalignments. Our modular tripod stands utilize locking through pins and threaded fine height adjustment for extra safety. During any welding processes, the pipe has to be stable in place and this tripod and its vee top comes as a standard feature allowing the operators to weld without any limitations. Its load capacity ensures an increase in productivity and efficiency since some manual tasks can be avoided. Lastly, our tripod stands also protects the pipe coating from being damaged.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Pipe Jack Stand with different specs, have a look at our:

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
