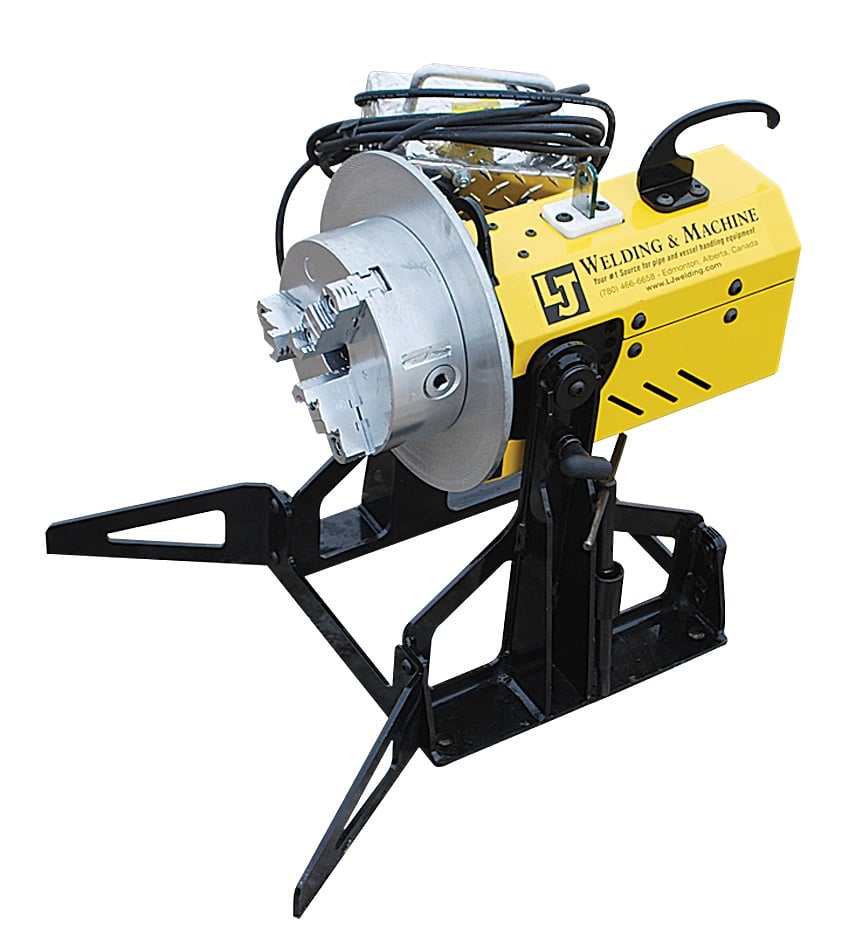

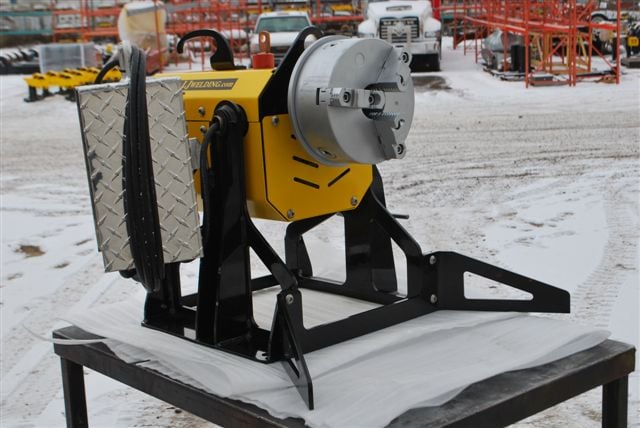

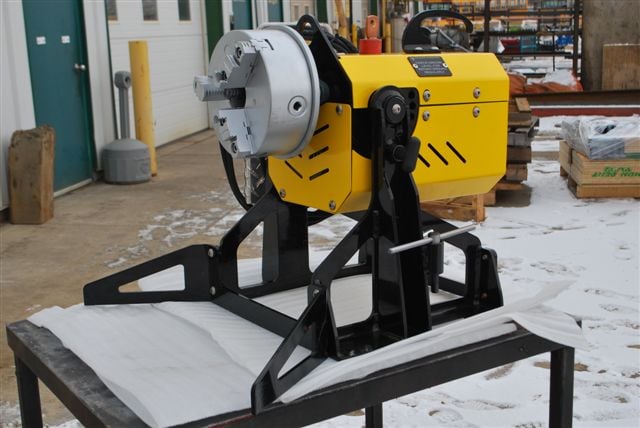

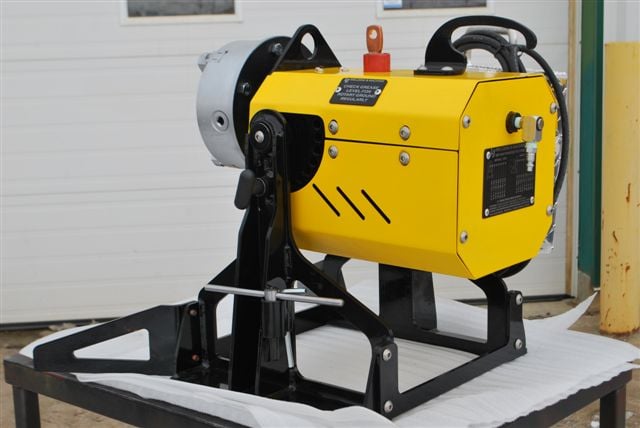

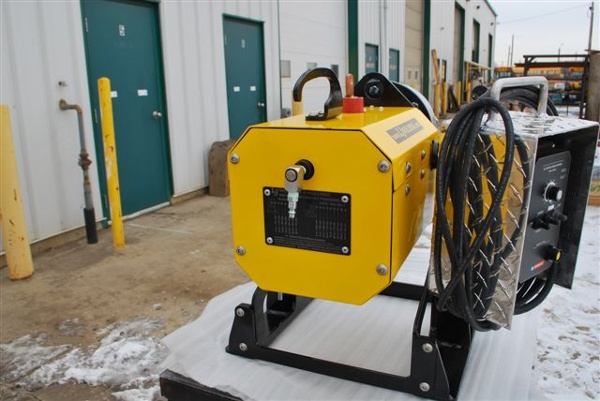

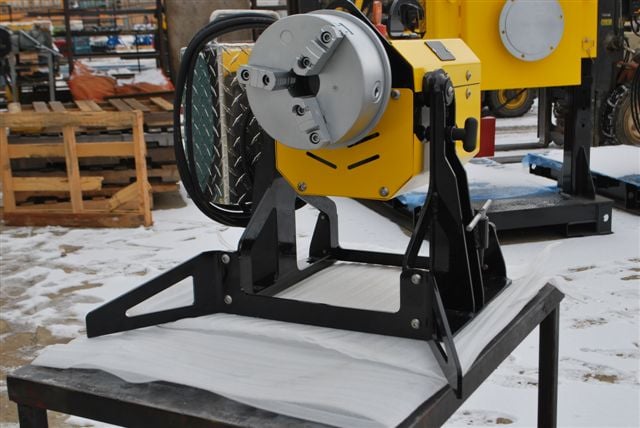

8″ Benchtop Positioner – Clearance Model
Price | $2,243 USD |
Load Capacity* | 300 lbs at chuck face (should be mounted to suitable base) |
Turning Torque | 700 in-lbs |
Table | 10" OD turntable compatible with 8" chuck, gripper or bolt on |
Footprint | 16.5" x 15" x 14" (height to center of gripper in horizontal position) |
Equipment Mass | Positioner: 94 lbs Chuck: 36 lbs |
Power Requirements | 110 V, 1-ph, 15A input |
Operation Speed Range | 0.7-7 RPM |
Controls | Variable Speed, forward/reverse DC drive. Optional foot or hand switches |
Range of Operation | Manually adjustable, 0° – 90°, in 15° increments |
Ground | Spring-loaded carbon brush 400 Amp (standard) |
Optional Accessories | Bolt on torch mount with rack/pinion adjustability, beveling head with angle gauge |
Applications | Ideal for use in light-duty and/or portable applications; air purge for stainless steel or TIG welding applications. |
