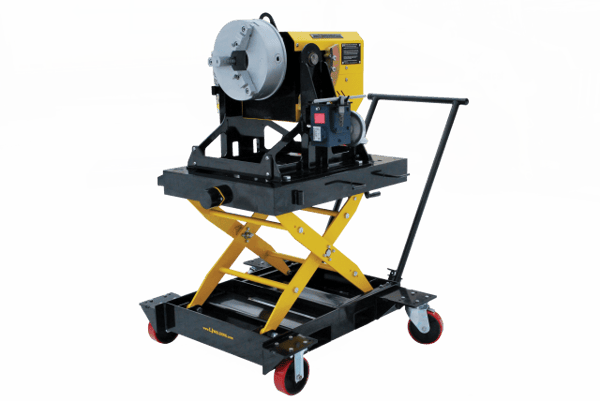

12″ Benchtop Welding Positioner – Clearance Model
| Price | $5,363 USD |
| Varies | 6 Units |
| Load Capacity | 1,000 lbs (at Chuck Face) |
| Footprint | 22" x 23" x 25" (18" to chuck center line) |
| Power Requirements | 110 V, 1-ph |
| Rotation Speed | 0.5-5 RPM |
| Turning Torque | 3,000 in-lbs |
| Table | 12" OD Turntable, 12" chuck or welding gripper optional |
| Ground Capacity | 800 Amps |
| Thru-Bore | 3/8" hollow spindle c/w air purge fitting |
| Range of Operation | Hand crank self locking worm gear tilt feature -5°–100° range c/w angle gauge |
| Equipment Mass | Positioner: 280 lbs, Chuck 110 lbs |
| Available Accessories | Hand Pendants: bidirectional with digital readout (Cabled); wireless style available (>110V models only) Foot Switch: forward/reverse standard; variable speed style available on request Work Holding: Grippers, chucks, or specialized fixtures Other: Elbow Jig fixtures and outboard pipe roller stands |
| Options | Input Power Options: as per standard spec or to customer requirements Custom Height Range: to customer requirement Ground Capacity: 200Amp, 400Amp, 800Amp, or 1500Amp Upgrade Controls: HMI touchscreens, full integration to LJ welding manipulators |
