Loading Capacity | 80,000 lbs |
Diameter Range | 24”- 216” |
Minimum Workpiece Length | 72" |
Rotation Speed | 5-50 in/min |
Track Drive Speed | 12-120 in/min |
Input Power | 480V, 3-ph* |
Minimized crane handling and maximized operator safety.
Fit up and indexing of large pipe and vessels up
to 80 tons and 20ft diameter or more.
Reduced fit up times by up to 65%.

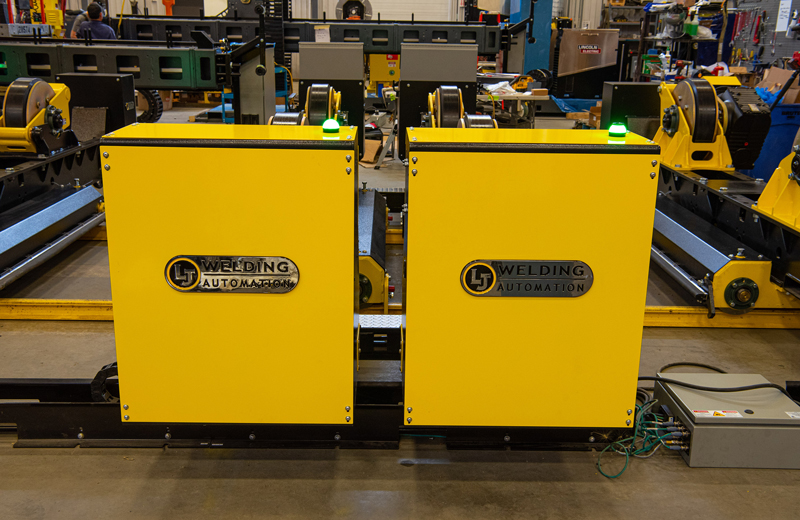

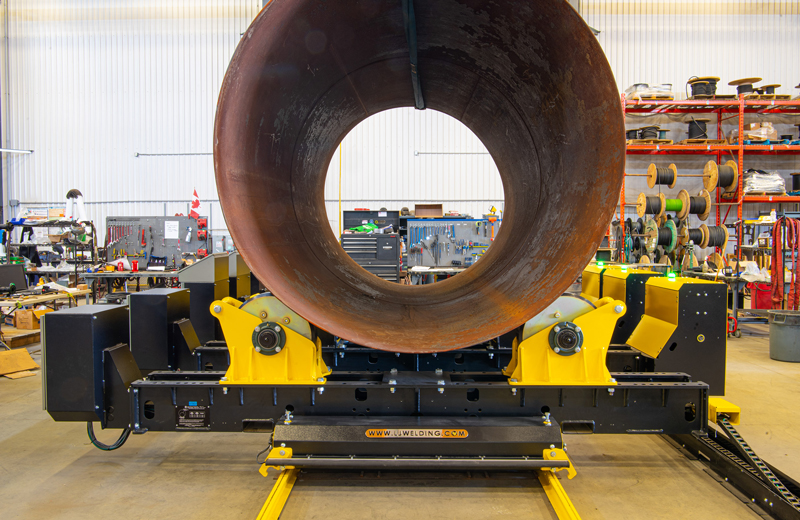

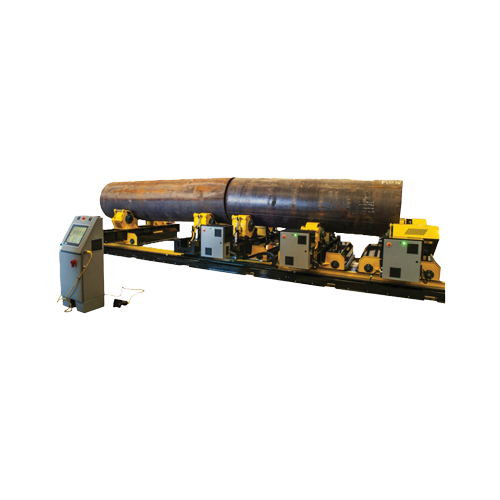

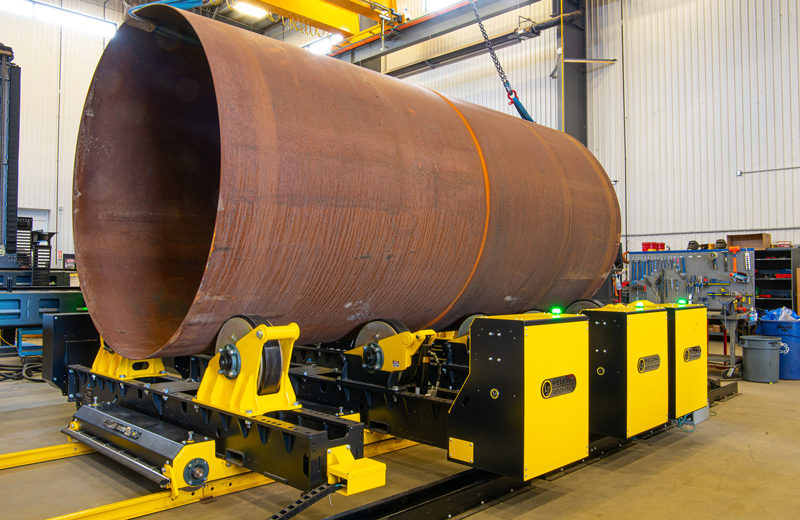

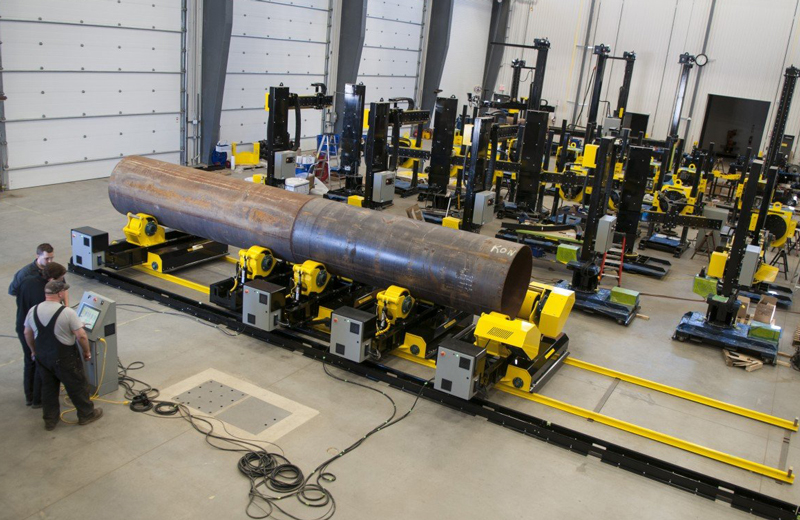

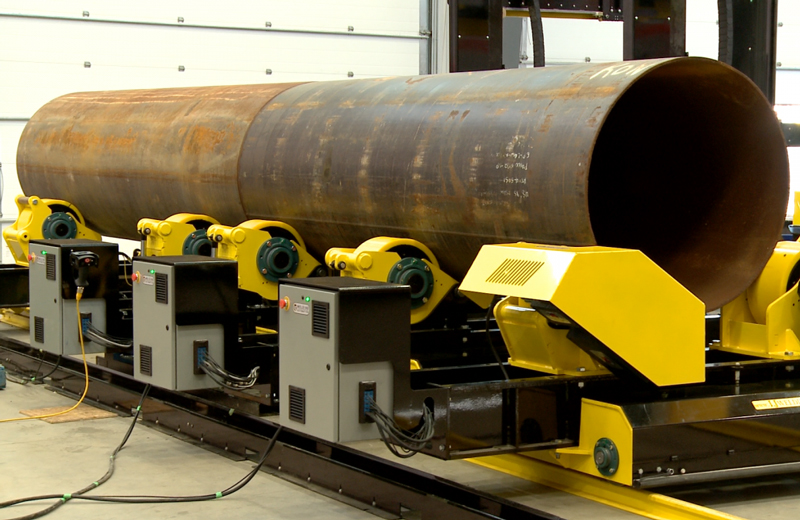

LJ offers a Growing Line Turning Roll System For Lease with a loading capacity of 40 tons. 40TA-100 system comes with a diameter range from 24" to 216" which allows it to adjust to cylindrical objects of different sizes while keeping the centerline. To perform efficiently, the 40TA-100 system requires a minimum workpiece length. All LJ growing line systems can be customized with custom accessories on customers' demand.
LJ’s vessel roller Growing Line Systems To Let offer fast alignment, levelling and fit-up for cost-efficient welding and assembly. 40TA-100 growing line system reduces worker fatigue and provides a secure way to position cylindrical parts. Additionally, LJ’s growing line systems also radically minimize crane handling and maximize operator safety throughout the whole process.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Growing Line System with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
