Growing Line Fit Up System To Let
100 TON 100TA-100

KEY SPECIFICATIONS

Loading Capacity 200,000 lbs
Diameter Range 66” - 240”
Minimum Workpiece Length 72"
Rotation Speed 5-100 in/min
Track Drive Speed 12-120 in/min
Input Power 480V, 3-ph*

MINIMAL CRANE HANDLING

Minimized crane handling and maximized operator safety.

FINE LEVELING

Fit up and indexing of large pipe and vessels up
to 100 tons and 20ft diameter or more.

TIME-SAVING

Reduced fit up times by up to 65%.

REQUEST QUOTE

PHOTO GALLERY

Growing Line - 100TA 100

Request quote

GROWING LINE SYSTEM TO LET • DESCRIPTION

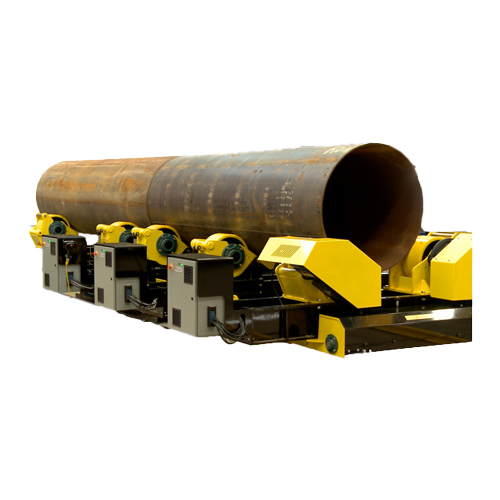

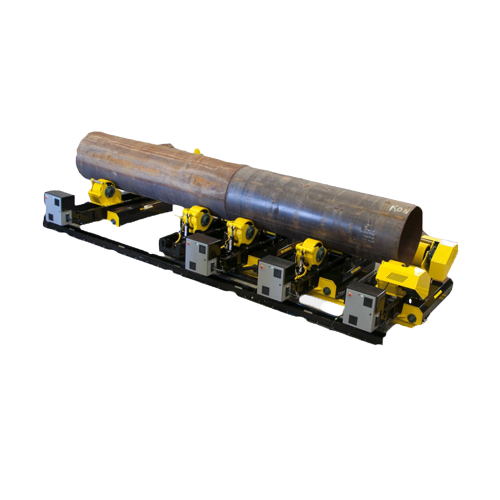

The Growing Line Fit Up System To Let 100TA features a loading capacity of 100 tons which allows it to carry and roll pipes of various weights while keeping an accurate centerline. It can also adjust to cylindrical objects of different diameters, specifically in a range from 66” to 240”. 100TA-100 system for rent requires a minimum length of the workpiece, 72”, in order to perform efficiently and within the standards.

GROWING LINE SYSTEM RENTAL • BENEFITS

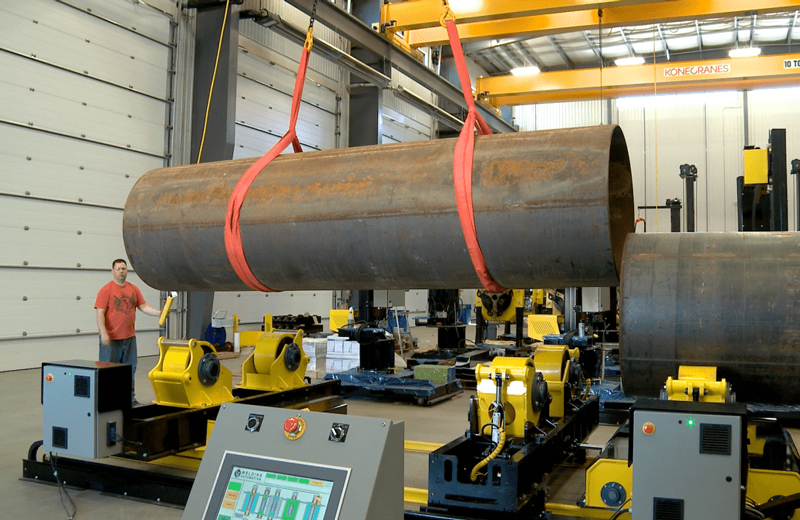

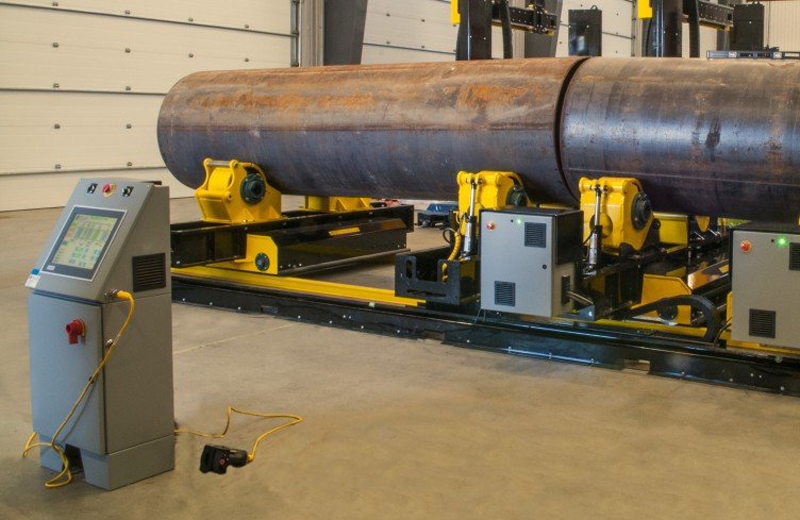

LJ’s Growing Line Fit Up Systems Rental options provide superior fit-up capabilities including powered elevation, side shift, track drive features, and indexing features which allow the operator to efficiently, safely line up and "grow" heavy vessel sections during fit-up. They also allow for the assembly of cans while minimizing the use of cranes, making it ideal for wind towers, tank or vessel manufacturing applications where numerous sections are being joined. Finally, LJ’s welding growing system line for rent 100TA-100 eliminates the need for wedges and inefficient/potentially unsafe manual jacking systems to align the cans.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Growing Line System with different specs, have a look at our:

40TA-100
GROWING LINE

Rent-Growing-Line-Turning-Roll-Systems-40Ton

60TA-100
GROWING LINE

Tank-Roll-Growing-Line-System-For-Rent-60TA

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
