Load Capacity | 20,000 lb |
Diameter Range | 4"– 48" |
Footprint | 63"x 43"x 22" |
Equipment Mass | 1,100 lb |
Roller Style | 4 urethane side rollers, 2 horizontal rollers (optional) |
Help minimize drag forces of pipe-pulling through horizontally drilled or bored holes.

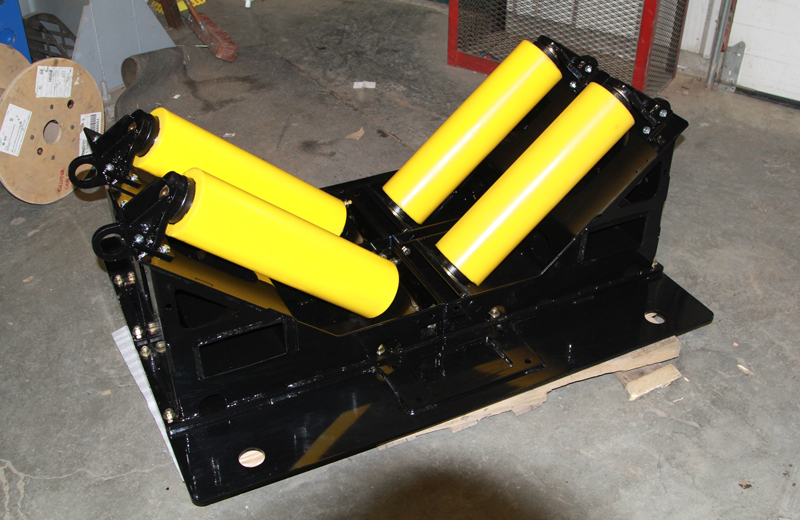

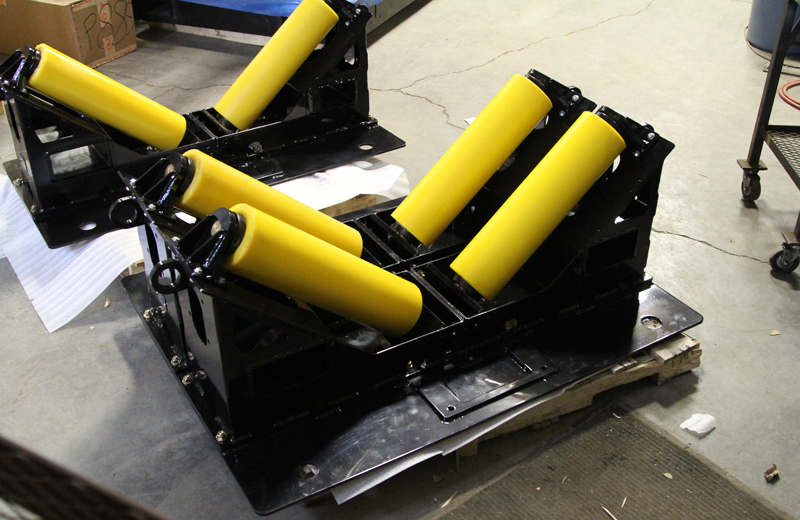

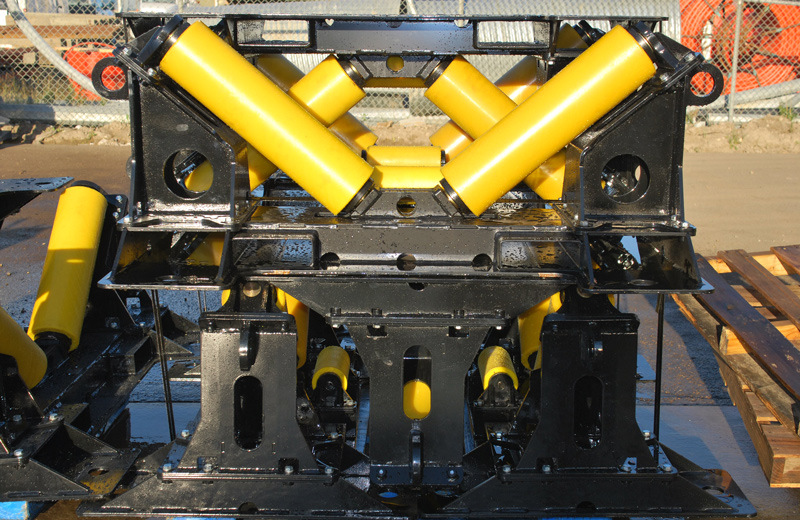

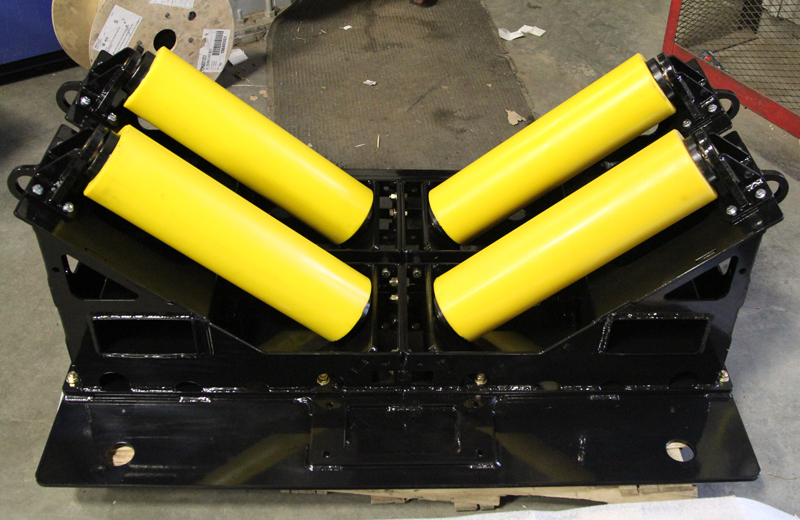

LJ’s 10-Ton Welding Pipeline Roller Rental HZM5-200 is used to guide the tubes during installation and to centre the piping accurately as it moves along the feeder cradle. Its rolling surface is composed of dual v-rollers, with the use of oversized roller bearings. LJ’s pipeline rollers are also used for supporting pipes that transmit petroleum products, crude oil, and natural gas to destinations around the globe. Our HZ6-300 pipe roller offers a load capacity of 5 tons and a diameter ranging from 4"–48". Finally, we also offer an additional feature that includes forklift pockets and lifts hooks for easier and better movement on the job site.
Our 10-Ton Welding Pipeline Roller Rental HZM5-200 provides a modular design that allows it to execute curved pulls, and its convenient lightweight ensures that it can be easily lifted with chain, straps or forks. LJ’s HZM5-200 ensures smooth and safe rolling that keeps the pipes above the ground, away from any dirt or anything else that could cause damage to it. Besides that, it is designed to protect the pipe exterior and minimize drag as the pipe is pulled through horizontal drill holes. Thanks to our pipeline roller HZM5-200, the process of handling and rolling pipes is easier which is time saving and reduces strain on operators. It leads to a job site running more efficiently which increases productivity and in the end, profitability as well. Overall, less equipment is needed on job sites which creates easier movement all around.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Pipeline Roller with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
