|Load Capacity||40,000 lb|
|Diameter Range||8"– 60"|
|Footprint||58"x 33"x 26"|
|Equipment Mass||900 lb|

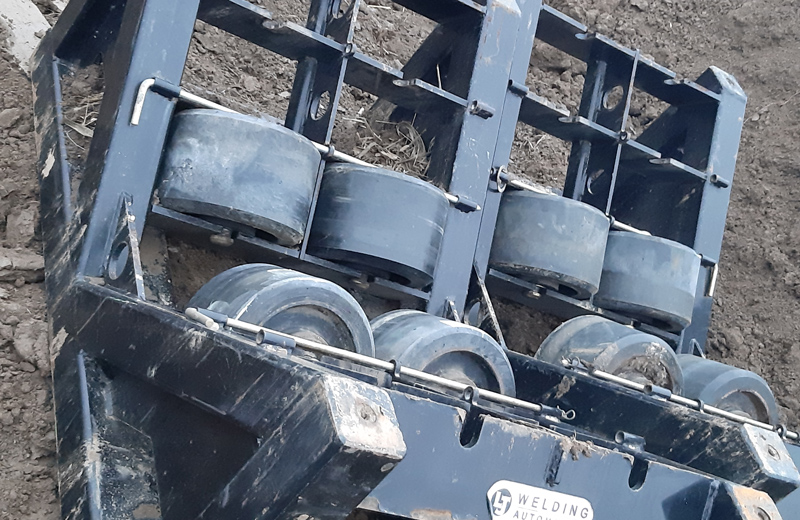

|Roller Style||4 urethane side rollers, 2 horizontal rollers (optional)|

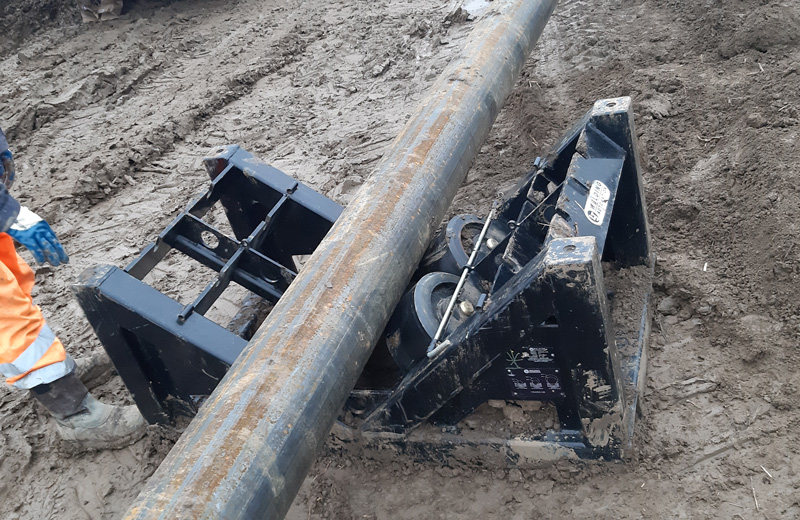

Help minimize drag forces of pipe-pulling through horizontally drilled or bored holes.

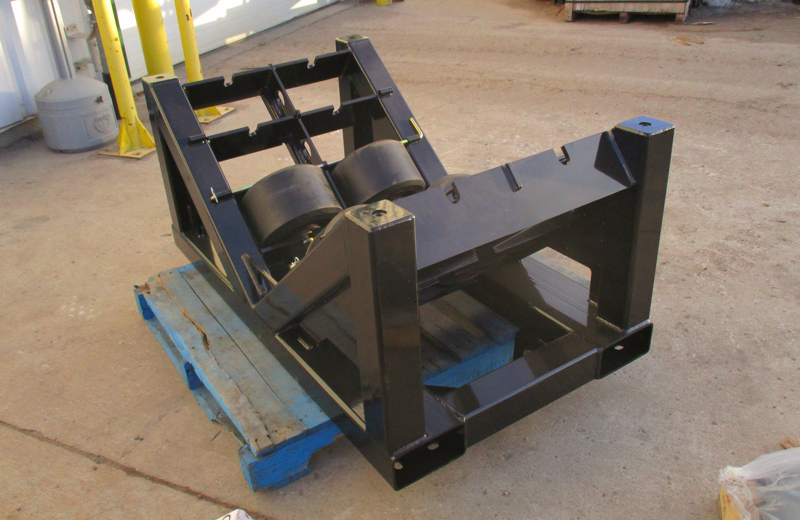

20-Ton Welding Pipeline Roller Rental HMZ303-100 is used to guide the tubes during installation and to centre the piping accurately as it moves along the feeder cradle. Its rolling surface consists of 4 urethane side rollers and ľ horizontal rollers while using moulded oversized roller bearings. LJ’s pipe rollers are also used for supporting pipes that transmit petroleum products, crude oil, and natural gas to destinations around the globe. LJ’s HMZ303-100 pipe roller offers a load capacity of 20 tons and a diameter ranging from 8" to 60". Finally, we also offer an additional feature that includes forklift pockets and adjustable rollers for easy moving on-site.

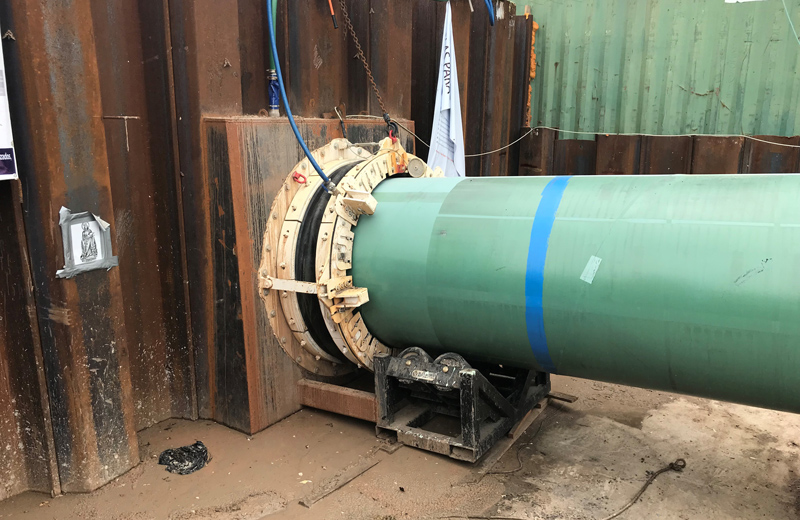

20-Ton Welding Pipeline Roller Rental HMZ303-100 makes the process of handling and rolling easier, time-saving and reduces strain on operators. It leads to a job site running more efficiently which increases productivity and profitability as well. In the end, it also means less equipment needed on job sites which creates easier movement for operators. Using our HMZ303-100 results in smoother and safer rolling that keeps the pipes above the ground, away from any contamination that could potentially damage them.
We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Pipeline Roller with different specs, have a look at our:
LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
