T12PS-100: 12,000 LBS GEAR TILT PIPE WELDING POSITIONER

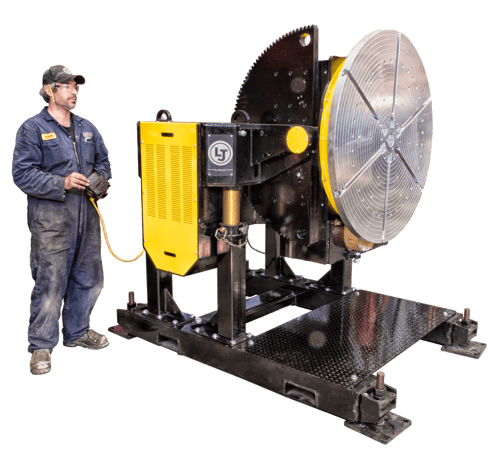

The T12PS-100 gear tilt pipe welding positioner conveniently repositions workpieces for an increase to your productivity and shop safety. It can support up to 12,000 lbs. at 0” to 12” overhung load. Workpiece manipulation is possible by tilting, rotating or lifting, giving the operator control and performance simplicity. The T12PS-100 has an 89”x 60”x 59” footprint.
Its tilting torque of up to 250,000 lbs. allows for effortless tilting of heavy workpieces at varying angles of up to 135° in 23 seconds. This sturdy torque gives you a tilting speed ranging from 0.05 to 1.00 rotations per minute (RPM). This gear tilt welding positioner’s tilting torque is 250,000 in-lbs.
Workpiece rotation is possible at a rate ranging from 0.05 RPM to 2.2 RPM. A wide range of RPM customization is available. Repositioning of heavy workpieces in done with 125,000 in-lbs. turning torque. With the highest turning torque in its class available on the market, this gear tilt positioner has been built to outlast its competitors.
This gear tilt pipe welding positioner offers up to 8 standard height adjustment options ranging between 48” and 80” in increments of 4”. The faceplate comes 48” OD with slots of sizes 6”x3/4” for attaching fixtures for welding. T12PS-100 has a ground capacity of 1500Amps with a weight of 9,550 lbs. It uses a power input of 480 V, 3-ph.
Gear Tilt Welding Positioner Accessories
The machine features plenty of accessories to boost functionality and customize it to your shop’s requirements.
Gear Tilt Welding Positioner Controls
Foot switches have ON/OFF functionality and a 25 feet long cable and hands free operating convenience. Bidirectional hand pendants with forward/ reverse are available with or without digital readouts. HMI hand pendants and control panels are a premium option that’s recommended for fully automated welding cells, offering seamless integration with your LJ welding manipulator.
Gear Tilt Positioner Fixtures
Fixture accessories available are chucks, grippers and elbow jigs. Customized or modified fixture options are available.
T12PS-100 Practical Benefits
- Supports up to 12,000 lbs. of weight. This allows you to tilt, rotate and lift your heavy workpieces.
- 250,000 lbs. tilting torque allows tilting of heavy workpiece up to 135o in 23 seconds.
- Steady and constant rotation speed to give you consistent welding quality. This is supported by a 125,000 lbs. turning torque.
- Up to 5 different height adjustability to give you desired welding height.
- Chuck gripper locks workpiece firmly into place.
- Optional accessories: hand pendant with digital readout, foot switch, chucks and grippers.
- Standard ground capacity of 1500Amps and power input of 480V,3-ph.
Looking to rent or lease a pipe welding positioner?
LJ Welding's engineering department provides a progressive approach to solving the unique problems that inevitably arise in our industry, resulting in efficient design, fabrication and timely delivery of custom equipment.
