Fit-Up Bed Tank Roller Line For Rent
20 Ton ALG-512

KEY SPECIFICATIONS

Loading Capacity 40,000 lbs
Diameter Range 5' – 14'
Drive System Dual drive, drive-shaft free style
Tractive Effort 6,000 lbs
Power Requirements 480V, 3-ph*
Rotation Speed 5-96 in/min
Equipment Mass 11,300 lbs (5 sections)

FAST & SAFE ALIGNMENT

Maintaining workpiece cylindrical shape by supporting the entire length of the tank or vessel.

FINE LEVELING

Fast & easy addition of sections for longer tank.

REQUEST QUOTE

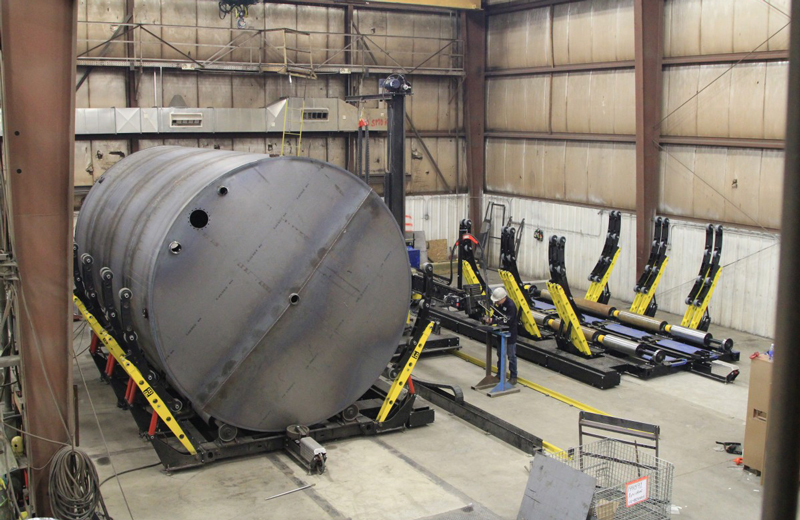

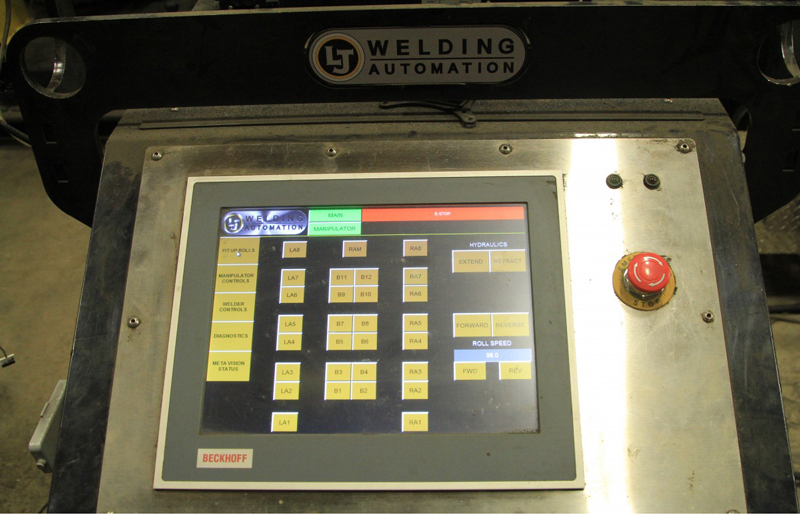

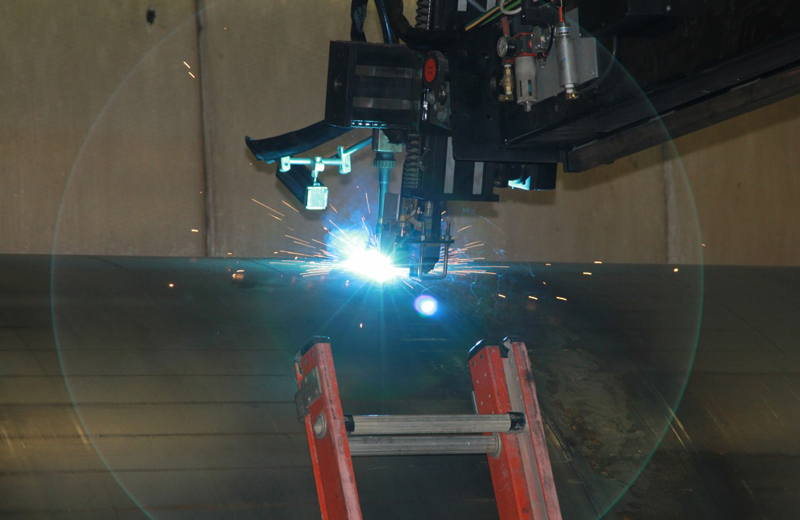

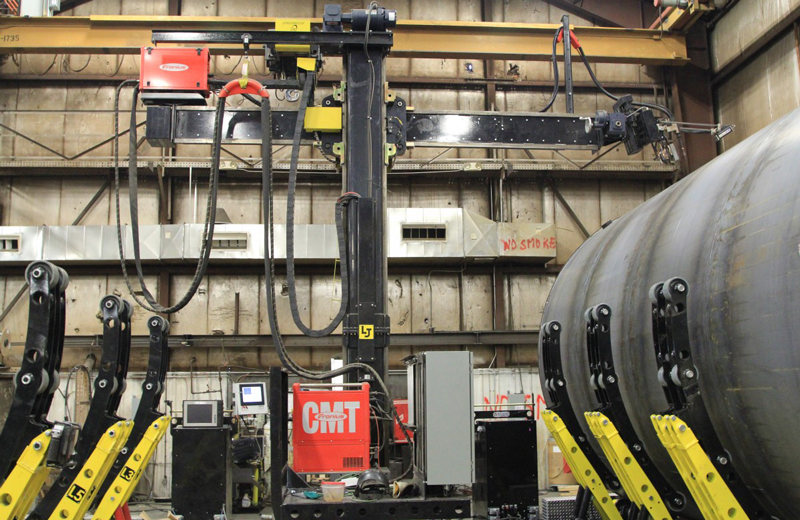

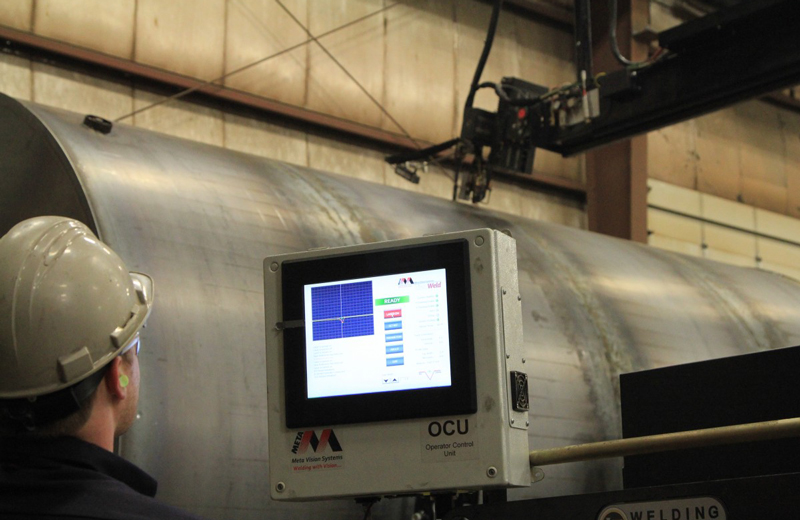

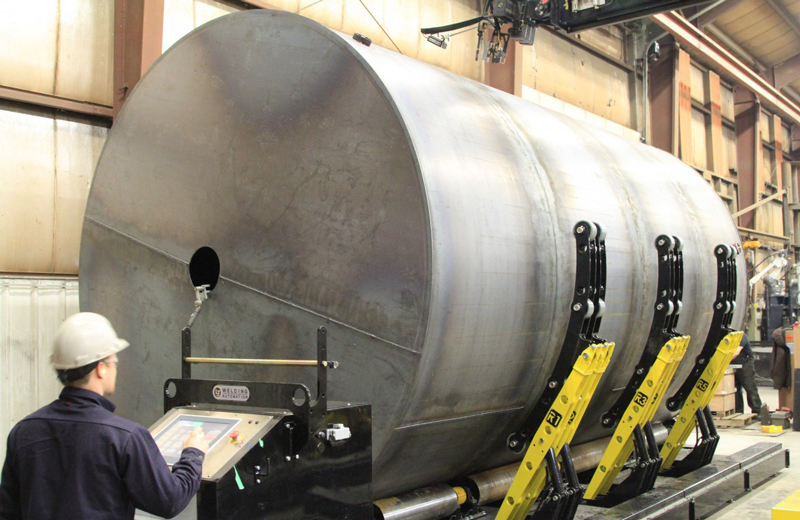

PHOTO GALLERY

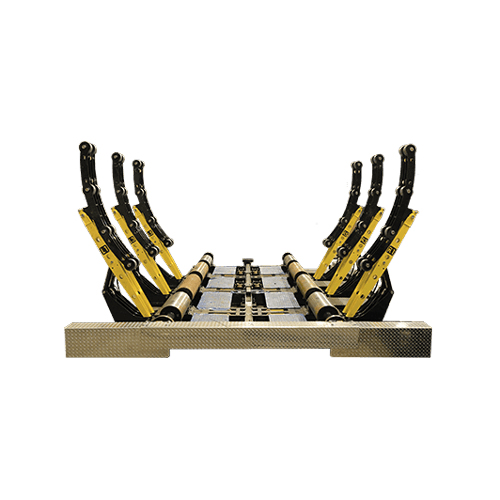

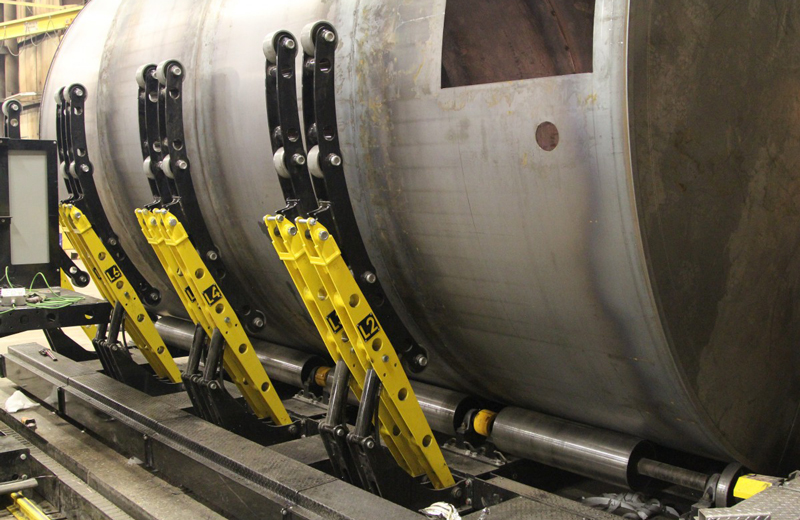

Tank Fit-Up Rolls Roller Bed Style - ALG 512

Request quote

FIT-UP TANK ROLLER LINE FOR RENT • DESCRIPTION

LJ's Fit-Up Bed Tank Roller Line For Rent are used for fitting range or length and diameter tanks or thin-walled vessels. They are also used to fit up and pin shell courses together to provide a rigid diameter vessel. The loading capacity of our fit-up tank rotator ALG-512 is 20 tons, 5 tons precisely per 5-foot long section. It provides a diameter range from 5 ft to 14 ft which allows it to adjust to a variety of vessels and work objects. Numerous options and accessories are available to be added as customers’ requests. That includes various footswitches, hand pendants but also customizable height range or even upgraded controls.

FIT-UP TANK ROLLER LINE FOR HIRE • BENEFITS

LJ's Fit-Up Bed Tank Roller Line For Hire introduces a convenient and economical way to fit-up vessels and other cylindrical objects. The fit-up system for lease allow support along the entire length of concentric tanks or vessels and essentially reduce crane dependency. LJ’s tank fit-up roll rentals allow users to add multiple sections for longer concentric tanks and improve worker safety. ALG-512 decreases pressure on vessels, maximizes control and traction, optimizes cost-effectiveness and improves rolling and positioning.

similar products

We, at LJ Welding, try to bring you the best products that satisfy your demands.
if you are looking for a Tank Fit-Up Roll with different specs, have a look at our:

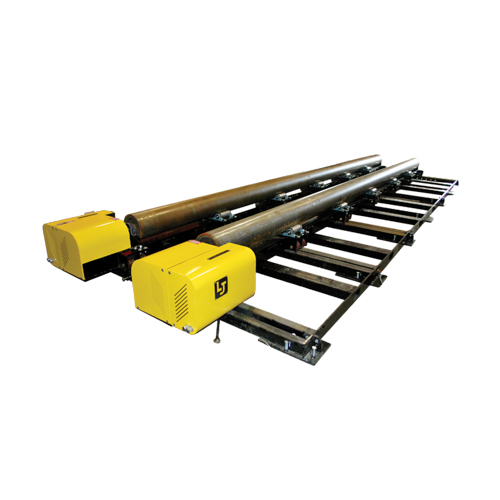

ALG-412
TANK FIT-UP ROLLS

Tank-Fit-Up-Bed-Roller-For-Hire-ALG412

LJ Welding's engineering department provides a progressive approach to solving the
unique problems that inevitably arise in our industry, resulting in efficient design,
fabrication, and timely delivery of custom equipment.
