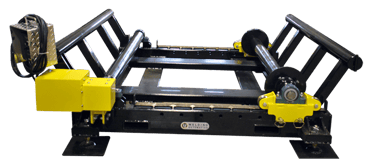

Refurbished 10-Ton Cable Reel Rollers (Cable Payout Rollers) CRR55-100
| Price | $11,550 USD |
| Varies | 5 Units |
| Load Capacity: | 20,000 lbs (10-ton) |
| Spool Size Range: | 2–8 ft diameter 5 ft-3 in max width |
| Tractive Effort/Torque: | Single Drive 880 lbs Tractive Effort (2,150 in-lbs output torque) |
| Rotation Speed: | 30–780 in/min |
| Height Range: | Low Profile, fine adjust leveling feet optional |
| Power Requirements: | 240 V, 1-ph |
| Equipment Mass: | 2,200 lbs |
| Footprint: | 79” x 95” x 29” (low profile height) 94½” width with safety catch installed |
| Brake Torque: | Adjustable slip clutch from 2,100–4,800 in-lbs |
| Controls: | Variable Speed, Forward/Reverse AC Drive, optional foot or hand switches, safety catch included |
| Available Accessories | Hand Pendants: bidirectional style Foot Switch: forward/reverse standard Rollers: hourglass style rollers to protect, support, and guide cable |
| Options | Input Power Options: as per standard spec or to customer requirements |
