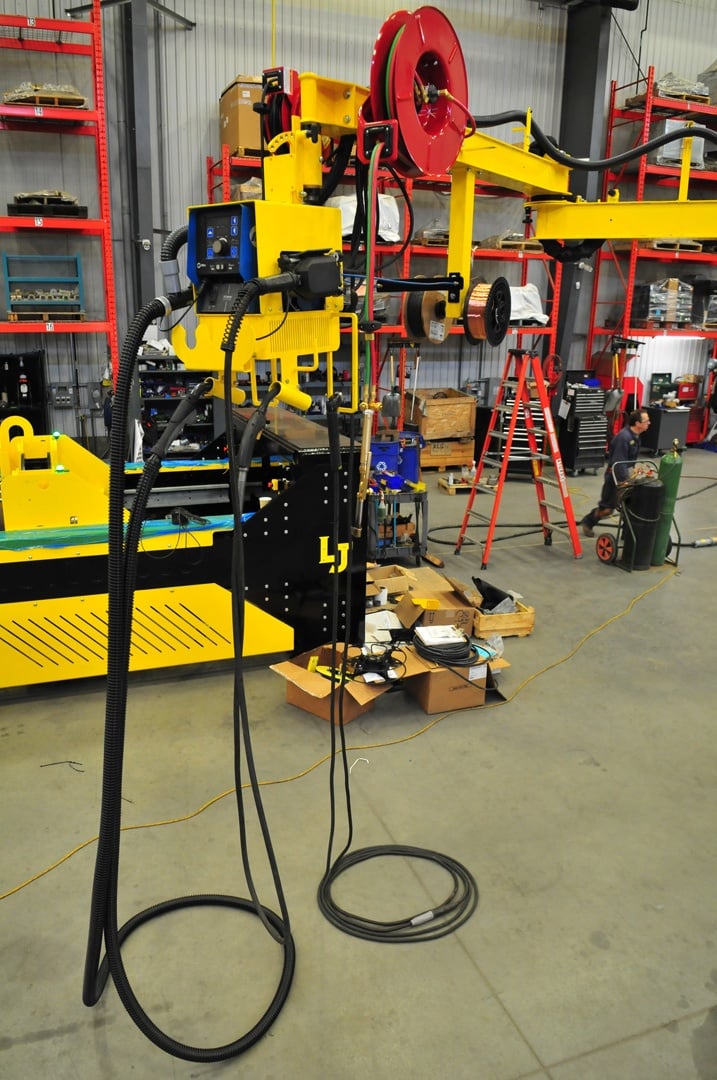

MIG Welding Boom Mount (Welding Jib) WSM-400

Features and Benefits
  • Roller bearings at all pivot points for smooth motion
  • Lock pin and adjustable drag brake at all pivot points to maintain boom position

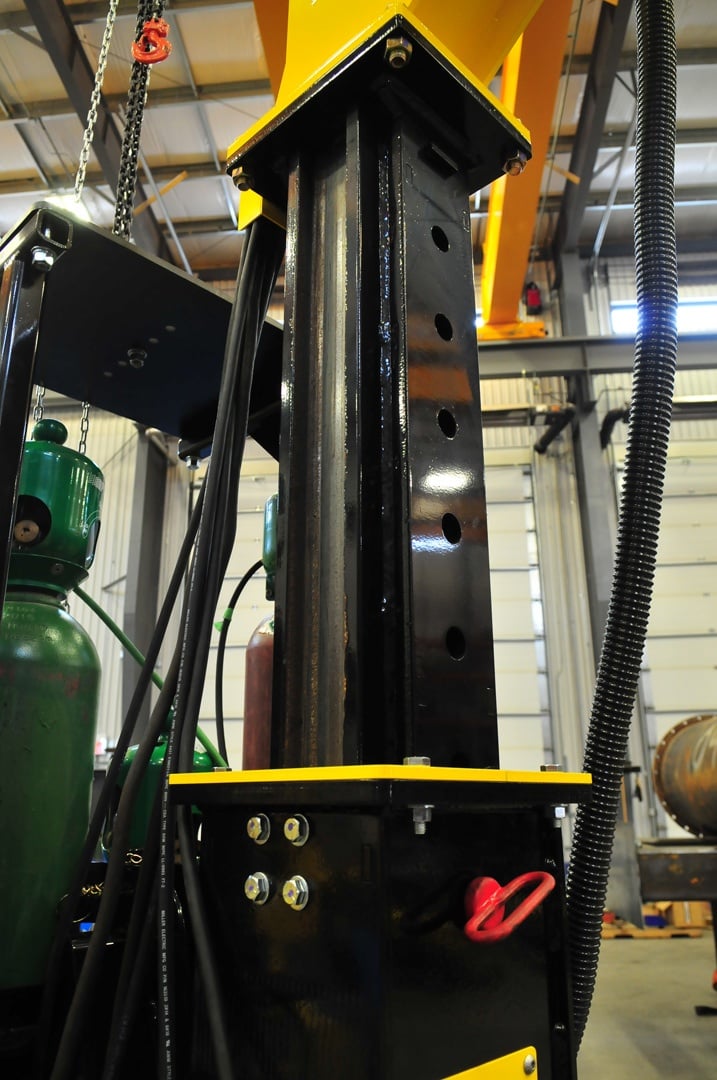

  • Pinned height adjustment for quick setup and storage
  • Integrated cable management channels keep cables safe and prevent tangleing

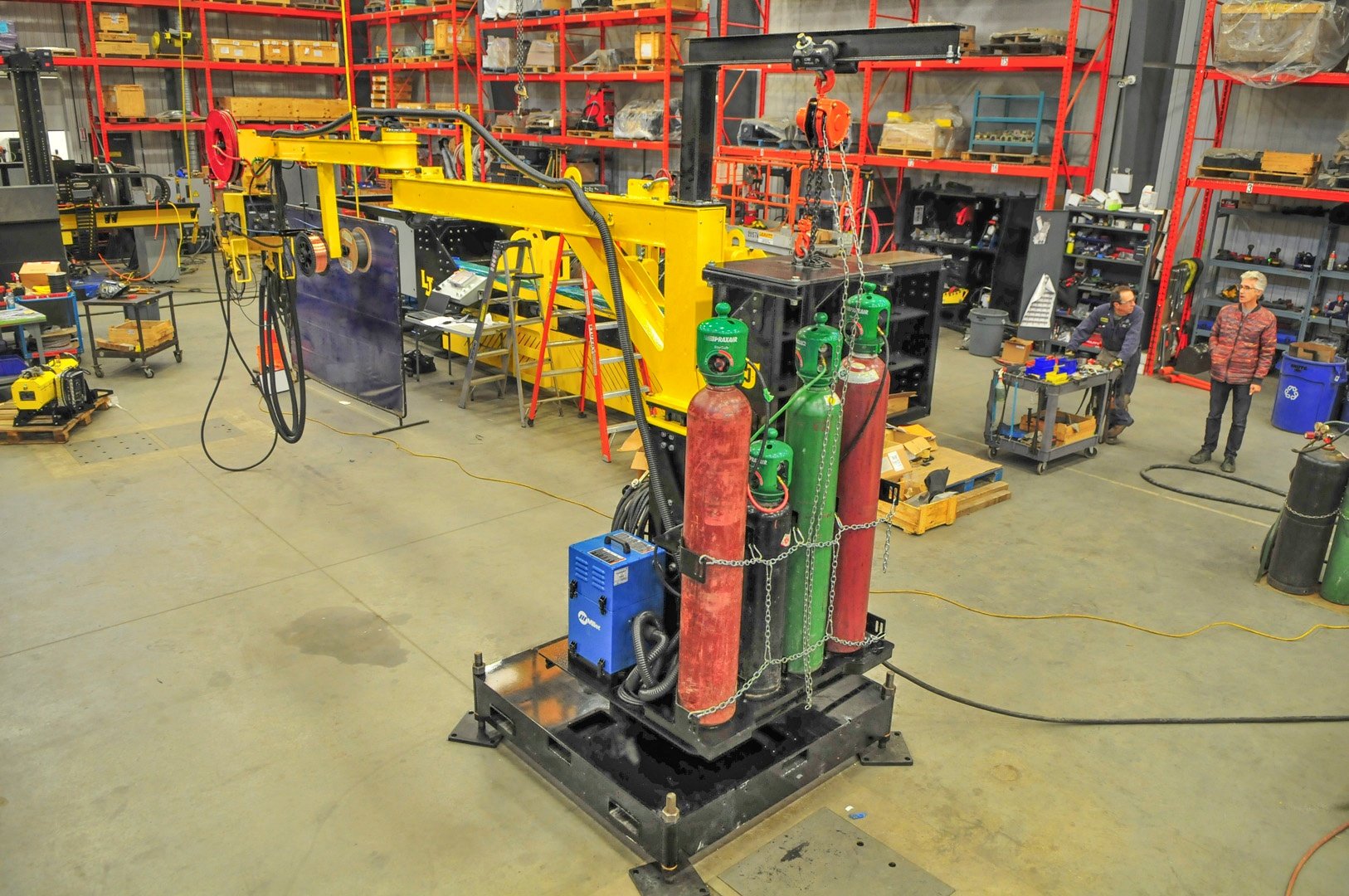

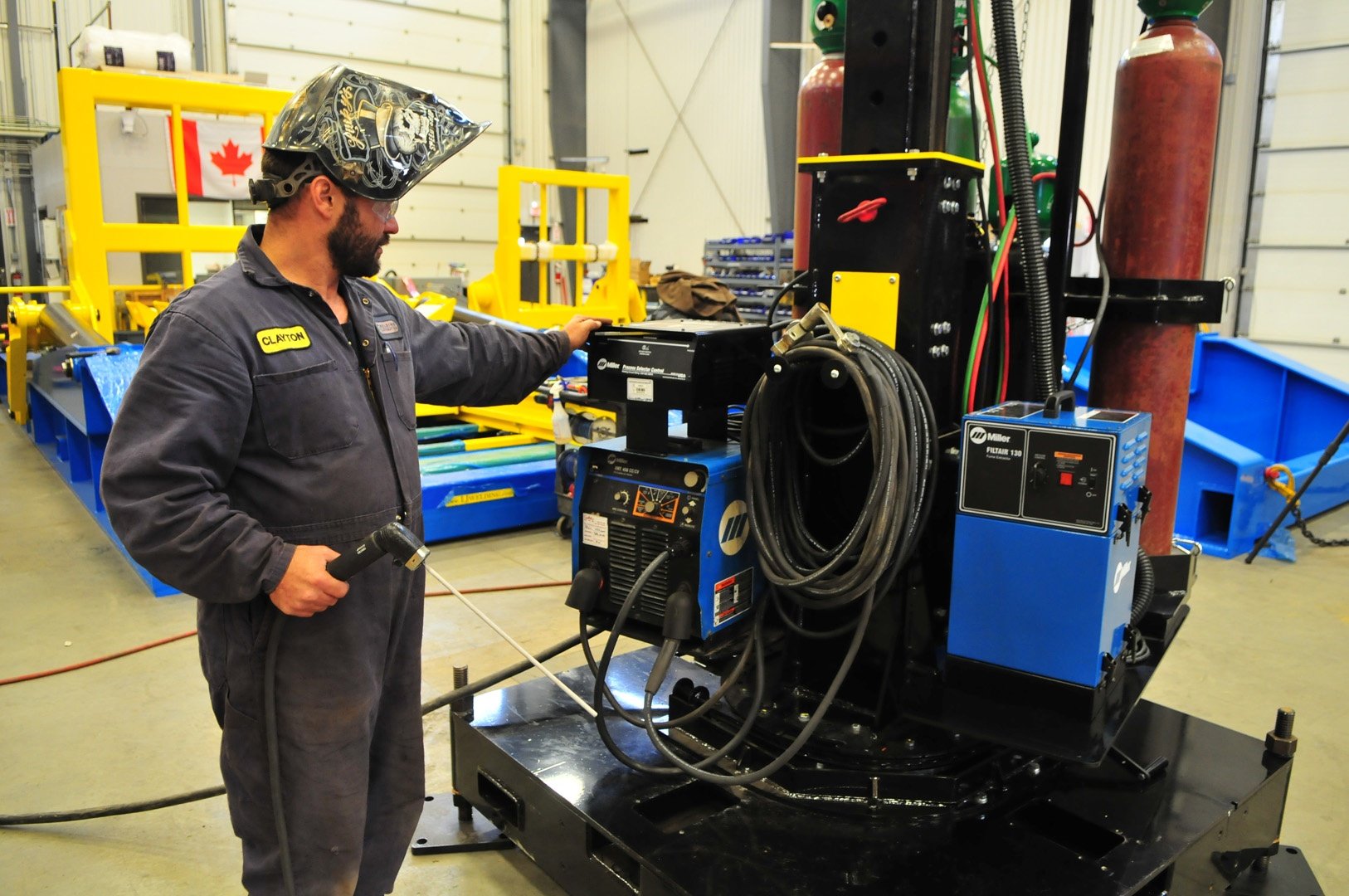

  • 2 x equipment platforms at base of column- platforms rotate with column to prevent tangling of cables
  • 4 x swivel feet to stabilizing base
  • Concrete filled, counter-weighted base for increased tipping load

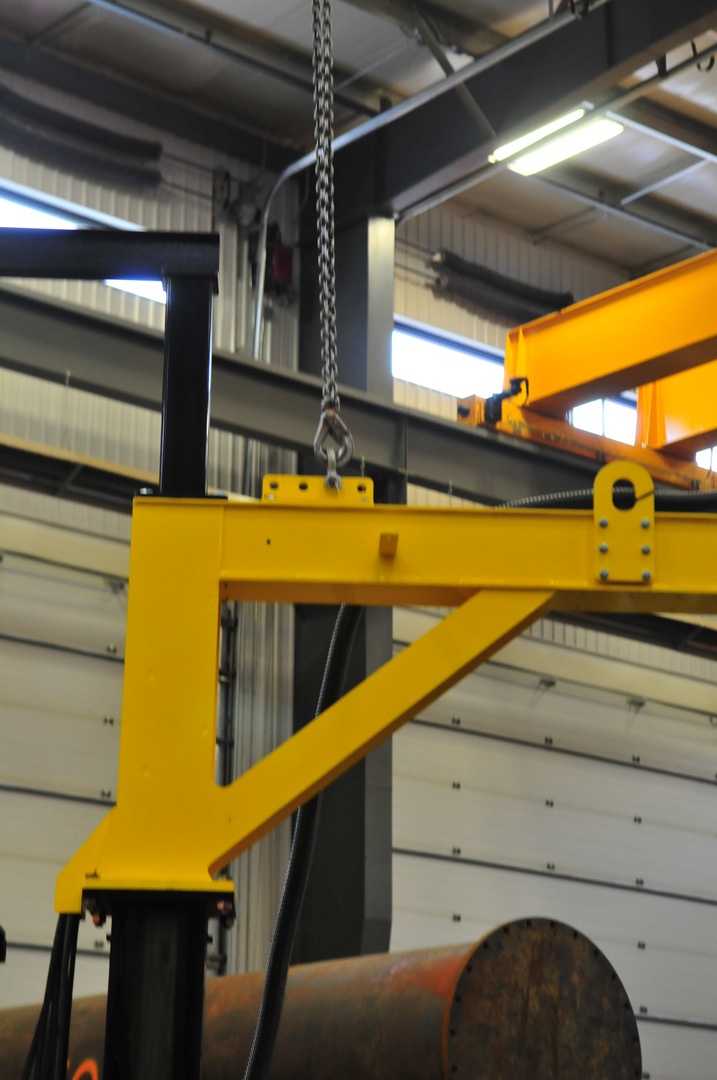

  • Lifting eyes and Forklift pockets for easy trasport

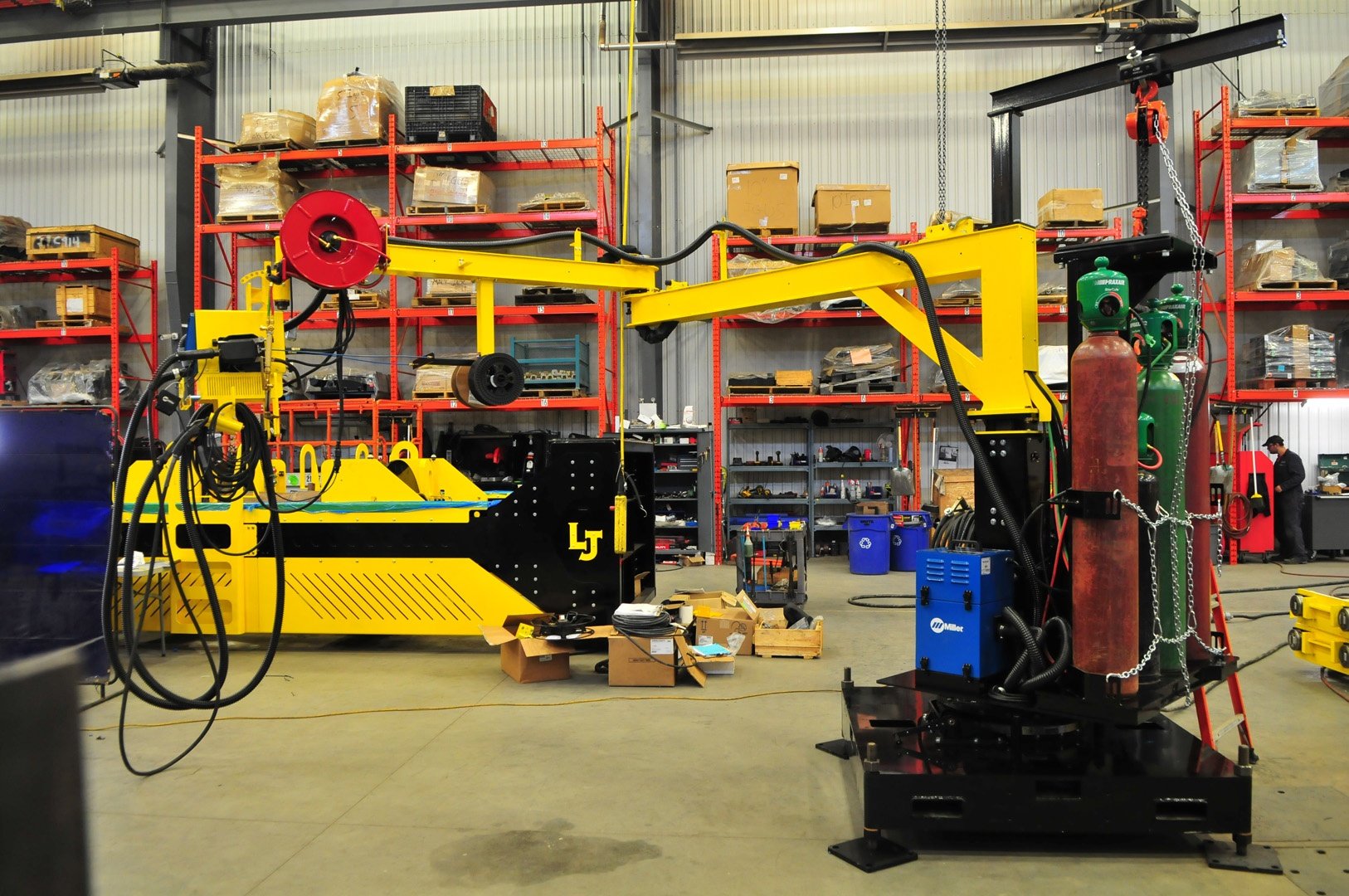

Working Radius  16 ft
Working Height (under boom) 88 1/2" to 120 1/2"
Equipment Weight 4,100 lbs  (1,864 kg)
Shipping Dimensions 74" width x 135" depth x 109" height
Additional Options

Wall Mount kit

Customizable boom-end mounting

Cable and hose reels

Outfitted to client's specifications ( welding, cutting, or product application equipment)
