12" Portable Welding Positioner


LJ's Iconic Benchtop Welding Positioner

The first portable welding positioner put LJ Welding on the map nearly four decades ago and since then, we never looked back. Our forward thinking vision has joined durababilty with affordibility in a compact and light weight design.  And with a 1,000lbs load capacity and the highest turning torque in it's class, it was built to turn your pipes. But with these specs, it'll turn heads for free.

Portable Floor Model Specs

Load Capacity: 1,000 lbs (chuck face)
Shipping Dimensions:

22 1/4" x 23 3/4" x 24 1/4"

(18" to chuck center line)
Power Requirements: 110 V, 1-ph
Rotation Speed: 0.5 - 5rpm
Turning Torque: 3,000 in-lbs
Table: 12 3/8" OD Turntable compatible with 12" chuck or welding gripper
Ground Capacity: 800 Amps
Thru-Bore: 3/8" hollow spindle c/w air purge fitting
Range of Operation: Hand crank self locking worm gear tilt feature -5 to 100 degree range c/w angle gauge
Equipment Mass: Positioner: 280 lbs, Chuck 110 lbs





Quality Built. Quality Priced.

Think You're Ready? Purchase Or Rent Today

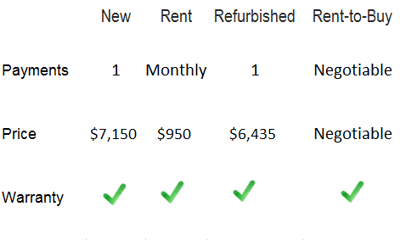

LJ's competitively priced welding positioners are built for the long haul, just like the people who buy them. For pricing and payment options, see below:





Need A Quote Or Have A Question?

Fill in the form on the left or click the button below if you have a question.

Contact Us

Request A Quote Today
